Heat is the first warning. Invisible. Until you see it.
The motor runs hot — permanent magnets begin to demagnetize, and output performance drops for good. The ESC is overloaded for too long — MOSFETs enter thermal runaway and eventually fail. Battery temperature rises abnormally — aging accelerates and the risk of swelling increases dramatically. Poor connector contact — higher resistance leads to overcurrent and localized melting. Before anything breaks, it heats up. The problem is, most RC drivers have never truly seen those temperatures...
FIR Behind ITV500 - How the ITV500 Sees Heat
Every surface radiates invisible heat. ITV500 detects FIR (far-infrared) energy and converts it into accurate, contact-free temperature data — transforming it into a live thermal image, so you can see temperature, instantly.
Born for RC Tuning
Every degree matters when performance is on the line. Whether you’re chasing lap consistency or fine-tuning gearing, ITV500 gives you instant thermal feedback — helping you protect your power system and extract every bit of speed. Precision up to ± 2 °C means you always know what’s running hot.
*Long-distance readings may appear lower due to the physical limits of infrared imaging. Move closer for more accurate temperatures.
Tuned for Every Material in Your RC Rig
From metal motors to carbon chassis, ITV500’s 0.01–1.00 adjustable emissivity* ensures accurate readings across every surface — capturing true temperatures without material bias.
*Actual emissivity varies with material, surface roughness, and oxidation, and may differ from reference values
*Emissivity settings significantly affect temperature measurement accuracy. Generally, the higher the emissivity of the target object, the more accurate the temperature reading. Actual emissivity can vary from reference values due to material type, surface roughness, oxidation, and other factors. When measuring the surface temperature of low-emissivity objects such as metals or glass, it is recommended to apply black tape or black paint to increase emissivity for more accurate results.
Pocket-Sized. Pit-Ready.
At just 38 g, ITV500 slips easily into your pocket or pit bag. Its bright 1.83″ touch display visualizes temperature gradients in seconds — from brushless motors to LiPo packs, connectors, or even tire surfaces.

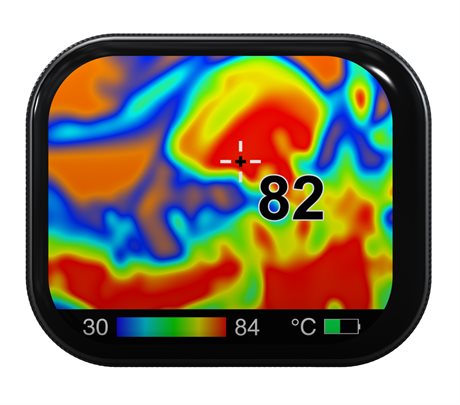

Smart Visualization
Rainbow, Iron Red, or White Hot — choose your thermal style. Tap to spot-measure any point, and let the ITV500 automatically mark the hottest and coolest areas on screen.
Rainbow
Ironbow
White Hot
Measure at Your Fingertip
Tap to measure any point on screen. See the hottest and coldest spots automatically marked. Switch between °C / °F / K, adjust brightness, fine-tune emissivity, or change settings — all with a touch on the intuitive display. Six-language interface (EN / 中文 / FR / DE / ES / JP) and auto power-off options keep it smart and efficient.
Fast Charge. Quick Update.
Recharge via USB-C and upgrade firmware effortlessly with UF2 drag-and-drop — no tools, no hassle.
Specs:
- Size: 46×38×20.1 mm
- Weight: about 38g
- Display Type: 1.83" capacitive touch screen 240 × 284 pixels
- IR Resolution: 32 × 24 pixels
- Thermal Sensitivity: 100mK @ 1Hz
- Field of View: 55° × 35°
- Frame Rate: 8 FPS
- LCD Display: 240 × 284 pixels
- Battery: 600 mAh rechargeable lithium battery
- Charging Interface: USB Type-C
- Charging Input Voltage: DC 5V
- Temperature Measurement Range: -20°C(-4℉) ~ 300°C(572℉)
- Measurement Accuracy: ±2.0℃(3.6℉)
- Measuring Distance: <5 m (for high accuracy, within <20 cm)
- Languages: EN / CN / FR / DE / ES / JP
- Operating temperature: -5℃-60℃
- Working humidity: ≤85%RH, non-condensing
- Storage temperature: 0°C–35°C
- Storage humidity: ≤65% RH, non-condensing
- Battery Built-in: 600 mAh rechargeable lithium battery
- Charging Interface USB: Type-C
- Charging Input Voltage: DC 5V
