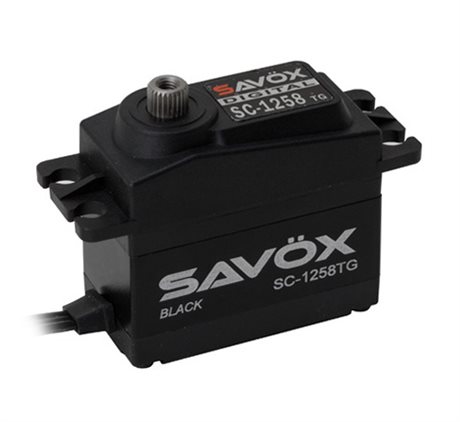

SAVÖX SC-1258TGBE - Titanium-Geared High-Speed Digital Standard-Sized Servo
The SC1258TG-BE combines leading edge technology with super high 12-bit (4096) resolution and an all black color for s stealth look in RC cars.
Features:
- Extremely strong titanium gears ensure long-life, durability and light weight
- Sleek black design with laser etching and a shorter 200mm black lead wire
- Ideal for CCPM on 600 and 700 class heli & steering servo on 1/10 scale buggies
- Aluminum middle case allows for cooler operating temperatures
Specifications:
- Torque @ 4.8V: 9.6kg/cm
- Torque @ 6V: 12kg/cm
- Speed @ 4.8V: 0.10 sec/60 deg
- Speed @ 6V: 0.08 sec/60 deg
- Dimensions L x W x H: 40.8 x 20.2 x 37.2mm
- Weight: 64g
Technical Details:
- Operating Temperature: -10° to 50°C
- Running Current (no load): 100mA @4.8V, 120mA @6.0V
- Stall Current (at locked): 4000mA @4.8V, 5000mA @6.0V
- Idle Current: 5mA @4.8V, 5mA @6.0V
- Wire Length: 250 +/- 5mm
- Output Gear Spline: 25 Tooth
- Bearings: 2BB
- Operating Travel: 100° (1000 → 2000 µ second)
- Neutral Position: 1500 µ second
- Pulse Width Range: 800 → 2200 µ second
- Maximum Travel: Appx 130° (900 → 2100 µ second)
- Refresh Rate: 333 Hz
- Motor Type: Coreless
