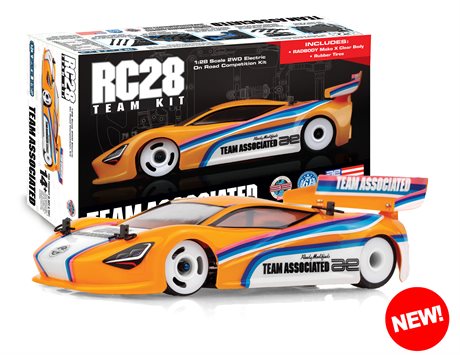

RC28R with Body and Tires Team Kit
1:28 Scale 2WD Electric On-Road Competition Kit
(#20165 + Body And Tires)
Introducing the Team Associated RC28R Team Kit. This compact on-road race car is designed with the same engineering precision found in every AREA 51-developed product. Though small in scale, the RC28R delivers big performance in an easy to set up package. Featuring a fixed-arm front suspension with included optional molded upper arms for tuning caster and camber. The torsion side links (soft, medium, and hard included) replace the need for a side spring making setup easy while adding performance in areas a conventional spring does not. The battery holder design ensures quick access without disturbing the center shock.
The steel chassis plate provides a low center of gravity while the insert adjustable roll center enables chassis roll adjustment based on the grip level. The pitch, roll and droop can further be tuned/Adjusted with the threaded aluminum center shock, spring collars and side damper tubes. The two-piece rear pod allows quick axle height adjustment utilizing Factory Team carbon fiber shims. Fine-tune Ackermann on the fly with the adjustable servo mount. Compact, tunable, and designed to race, the RC28R is built for high performance and fun—even in tight spaces.
Features
- RADBODY Mako X clear body and tires included
- Fixed arm style front end with optional molded upper arms to adjust caster and camber
- Front bulkhead design allows for quick upper arm changes with consistent fitment and position
- Optimized steering geometry with adjustable servo mount to tune ackerman on the fly
- Steel chassis plate for low center of gravity
- Easily removable battery holder to access the battery without removing center shock
- Torsion style side links act as side spring with soft, medium, and hard options included
- Adjustable rear pod roll center inserts to tune roll characteristics to grip level
- Optimized roll geometry with side damper tubes
- Threaded aluminum center shock with adjustable droop and spring collar
- Two-piece rear pod with adjustable axle heights for different tire diameters and ride heights utilizing Factory Team carbon fiber shims
- Gear differential included and can fit other aftermarket options currently available
- Hard plastic and polycarbonate body mounting options included
- White wheels included that fit optional front wheel flanges to tune steering feel
- Universal front bumper included
- Team Associated’s quality, distribution, support, and customer service
Other Helpful Items
- Silicone Shock Fluid (Refer to catalog for complete listings)
- Silicone Diff Fluid (Refer to catalog for complete listings)
- Body Scissors (AE Part # 1737)
- Reamer / Hole Punch
- FT Wrench Set (AE Part #1519)
- Hobby Knife
- Needle Nose Pliers
- Wire Cutters
- Soldering Iron
- Calipers or a Precision Ruler
- 1.5mm hex, .050” hex, 1.3mm hex, 0.9mm hex, 4.5mm nut, and PH00 drivers
