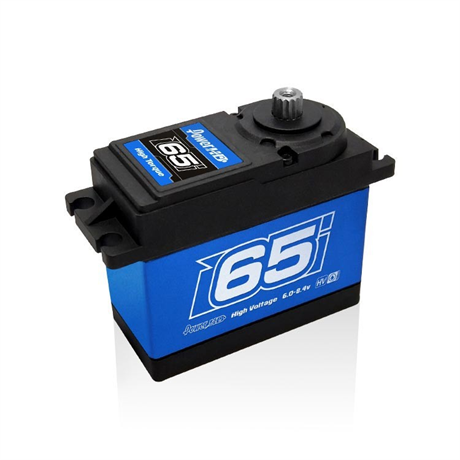

HV, Waterproof, Digital, Metal Gear, Ball Bearing, 65.8 x 30.0 x 55.6mm
Coming from Power HD the WH-65KG is ideal for 1/5 scale vehicles! With fresh waterproof design, double bearing, at 8.4V input it pulls up to 65kg-cm of torque! The 15T spline perfectly matches the large scale class standards.
■ Torque(6.0V): 55.0 kg-cm / ( 763.8 oz/in)
■ Torque(7.4V): 60.0 kg-cm / ( 833.2 oz/in)
■ Torque(8.4V): 65.0 kg-cm / ( 902.7 oz/in)
■ Speed: 0.19 sec (6.0V)│0.17sec (7.4V)│0.15 sec (8.4V)
■ Operating Voltage：6.0 ~ 8.4 DC Volts
■ Weight: 200.0 g (7.05 oz)
■ Bearing Type：Ball Bearing x 2
■ Motor Type：DC Motor
■ Gear Type：Copper & Steel
■ Size：65.8x30.0x55.6mm (2.59x1.18x2.19 in)
■ Horn gear spline: 15T (optional alu horn HD-AP2530 is suitable)
Torque(6.0V): 55.0 kg-cm / ( 763.8 oz/in)
Torque(7.4V): 60.0 kg-cm / ( 833.2 oz/in)
Torque(8.4V): 65.0 kg-cm / ( 902.7 oz/in)
Speed: 0.19 sec (6.0V)│0.17sec (7.4V)│0.15 sec (8.4V)
Operating Voltage：6.0 ~ 8.4 DC Volts
Weight: 200.0 g (7.05 oz)
Bearing Type：Ball Bearing x 2
Motor Type：DC Motor
Gear Type：Copper & Steel
Operating Temperature：-10℃~60℃
Working frequency：1520μs / 333hz
Size：65.8x30.0x55.6mm (2.59x1.18x2.19 in)
