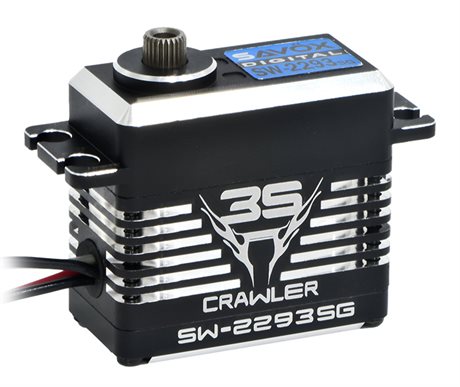

SAVÖX SAV-SW2293SG - SW-2293SG Crawler Servo 75Kg 3s LiPo Powered Alu Brushless Steelgear WP
Blue Line
Built for adventure, the Blue Line is IP67 waterproof-rated and ready for anything. These servos are designed for boats, trail crawlers, and RC builds that encounter mud, water, and extreme terrain. With rugged construction, durable gearing, and high-voltage compatibility, Blue Line servos keep going even when the trail gets rough. When you can’t predict the conditions - this is the servo to trust.
Direct Power, 3S Ready
Introducing the SW-2293SG — a direct-power servo designed for crawlers using 3S LiPo setups. Runs straight from your LiPo — no BEC bottleneck, no compromises.
Watch to learn about the separate power/signal wiring and why this format delivers more torque.
Steel Gear Durability
Rugged gear train engineered to handle shock loads and heavy-duty crawling.
High Torque Output
Over 70kg/cm at 12.6V, delivering strength for demanding crawler applications.
IP67 Waterproof
Built to withstand mud, water, and extreme trail conditions.
Specs:
- Line: BLUE LINE
- Application: CAR / BOAT
- Servo Size: Standard
- Operating Voltage: 12.6V (3s LiPo)
- Speed @12.6V: 0.11s/60°
- Torque @12.6V: 75kg/cm
- Amplifier Type: Digital Controller
- Motor Type: Patented Lightweight Brushless
- Case Type: Aluminium
- Protection: Waterproof (IP67)
- Dimensions: L41xW21xH39.9mm
- Weight: 90g
- Gear Type: Specialized Steel
- Compatibility: Sanwa SUR & SSR, Futaba UR & SR
- PCB Board: 32-bit
- Horn Gear Spline: 25T (Φ6)
- Rotating Direction: Clockwise (when 1000→2000μsec)
- Max Travel: ~180° (when 600→2400μsec)
- Operating Travel: 100° (when 1000→2000μsec)
- Neutral Position: 1500μsec
- Bearing: 3x Ball Bearings
- Potentiometer: VR
- Cable Diameter: 22AWG
- Cable Length: 450±5mm
- Connector: JR
- Stall Current @12.6V: 6500mA
- Operating Current @12.6V: 100mA
- Idle Current: 5mA
- Dead Band Width: 3-5μsec
- Frequency Range: 50-360Hz
- Control System: Pulse Width Modification
- Operating Temperature: -10°C to 50°C
