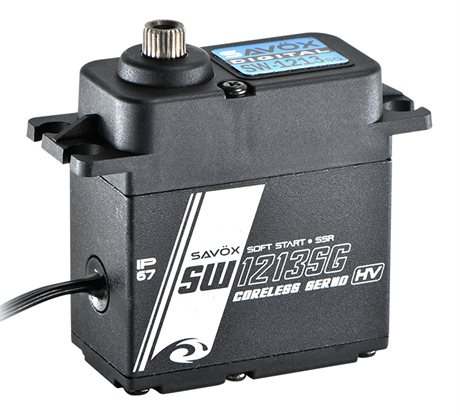

SAVÖX SAV-SW1213SG - SW-1213SG Servo 38Kg 0.16s HV Alu Brushless Steel Gears WP
Blue Line
Built for adventure, the Blue Line is IP67 waterproof-rated and ready for anything. These servos are designed for boats, trail crawlers, and RC builds that encounter mud, water, and extreme terrain. With rugged construction, durable gearing, and high-voltage compatibility, Blue Line servos keep going even when the trail gets rough. When you can’t predict the conditions - this is the servo to trust.
Specs:
- Line: BLUE LINE
- Application: CAR / BOAT
- Servo Size: Standard
- Operating Voltage: 6.0V-8.4V
- Speed @6.0V: 0.19s/60°
- Torque @6.0V: 32kg/cm
- Speed @7.4V: 0.16s/60°
- Torque @7.4V: 38kg/cm
- Speed @8.4V: 0.14s/60°
- Torque @8.4V: 42kg/cm
- Amplifier Type: Digital Controller
- Motor Type: Coreless
- Case Type: Hybrid (Aluminium/Composite)
- Protection: Waterproof (IP67)
- Dimensions: L40.6xW20.7xH46.2mm
- Weight: 83g
- Gear Type: Specialized Steel
- Compatibility: Sanwa SSR
- PCB Board: 12-bit
- Horn Gear Spline: 25T (Φ6)
- Rotating Direction: Counter clockwise (when 1000→2000μsec)
- Max Travel: ~130° (when 800→2200μsec)
- Operating Travel: 100° (when 1000→2000μsec)
- Neutral Position: 1500μsec
- Bearing: 2x Ball Bearings
- Potentiometer: VR
- Cable Diameter: 22AWG
- Cable Length: 450±5mm
- Connector: JR
- Stall Current @6.0V: 4200mA
- Operating Current @6.0V: 130mA
- Stall Current @7.4V: 5200mA
- Operating Current @7.4V: 150mA
- Stall Current @8.4V: 6000mA
- Operating Current @8.4V: 180mA
- Idle Current: 5mA
- Dead Band Width: 3-5μsec
- Frequency Range: 50-360Hz
- Control System: Pulse Width Modification
- Operating Temperature: -10°C to 50°C
