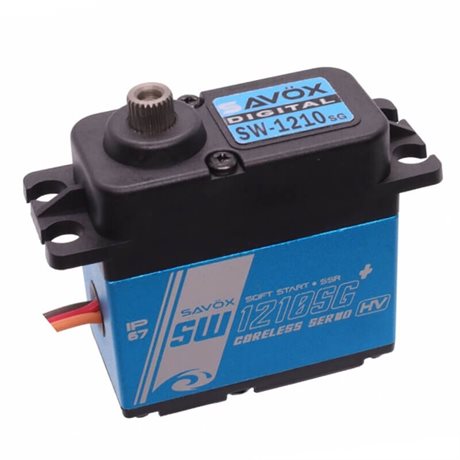

SAVÖX SW-1210SGPLUS - Monster Torque High Voltage Water Proof Servo
The SW-1210SG Plus is the premier waterproof digital servo in the Savox Lineup. This coreless servo provides great torque and is a great upgrade if your looking to drive your RC vehicle in any condition...rain, sleet, or snow.
Features:
- New: Soft Start
- High Voltage (Now 8.4V!)
- Strong unique steel gears provide durability and assurance
- Waterproof construction for harsh elements
- Ideal for cars, trucks and boats subject to water or snow
Specifications:
- Torque @6V: 20kg/cm
- Torque @7.4V: 32kg/cm
- Torque @8.4V: 37kg/cm
- Speed @6V: 0.15 sec/60 deg
- Speed @7.4V: 0.13 sec/60 deg
- Speed @8.4V: 0.12 sec/60 deg
- Dimensions L x W x H: 40.6 x 20.7 x 42mm
- Weight: 71g
Technical Details:
- Operating Temperature: -10° to 50°C
- Running Current (no load): 120mA @6.0V, 150mA @7.4V
- Stall Current (at locked): 6000mA @6.0 V, 7400mA @7.4V
- Idle Current: 5mA @6.0V, 5mA @7.4V
- Wire Length: 150 ± 5mm
- Output Gear Spline: 25 Tooth
- Bearings: 2BB
- Operating Travel: 100° (1000 → 2000 µ second)
- Neutral Position: 1500 µ second
- Pulse Width Range: 800 → 2200 µ second
- Maximum Travel: Appx 130° (900 → 2100 µ second)
- Refresh Rate: 333 Hz
- Motor Type: Coreless
