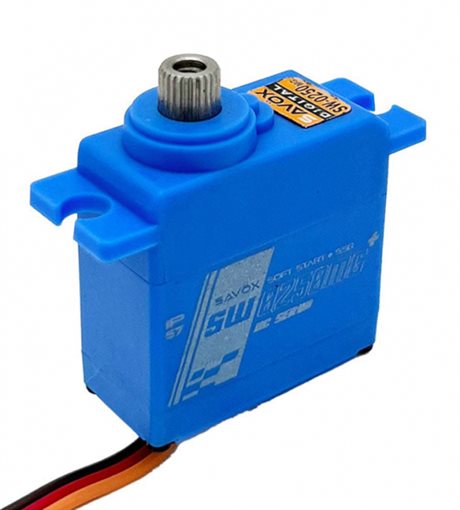

SAVÖX SW-0250MG-PLUS - Water Proof Metal-Geared Mini Servo
The SW-0250MG-PLUS is a waterproof, high torque, digital mini servo that performs! An excellent replacement for the standard servo found in Traxxas 1/16 scale vehicles.
Features:
- New: Soft Start
- New: Sanwa SSR compatible
- Strong metal gear train for added durability
- Waterproof case design
- Ideal for cars and boats subject to water or snow
- Ideal for Traxxas 1/16 vehicles
Specifications:
- Torque @4.8V: 3.5kg/cm
- Torque @6V: 5kg/cm
- Speed @4.8V: 0.14 sec/60 deg
- Speed @6V: 0.11 sec/60 deg
- Dimensions L x W x H: 29.5 x 14.0 x 32.5mm
- Weight: 25g
Technical Details:
- Operating Temperature: -10° to 50°C
- Running Current (no load): 80mA @4.8V, 100mA @6.0V
- Stall Current (at locked): 1000mA @4.8V, 1250mA @6.0V
- Idle Current: 5mA @4.8V, 5mA @6.0V
- Wire Length: 200 ± 5mm
- Output Gear Spline: 21 Tooth
- Bearings: 1BB
- Operating Travel: 100° (1000 → 2000 µ second)
- Neutral Position: 1500 µ second
- Pulse Width Range: 800 → 2200 µ second
- Maximum Travel: Appx 130° (900 → 2100 µ second)
- Refresh Rate: 240 Hz
- Motor Type: Brushed
