The SW-0241MG is a waterproof, large scale, and digital servo. It is metal-geared with an amazing amount of torque while capable of operating on high voltage.Features:- Ideal for 1/5 scale off road, large scale boat and aircraft applications
- Waterproof case design.
- Strong metal gear train for added durability.
SW-0241MG

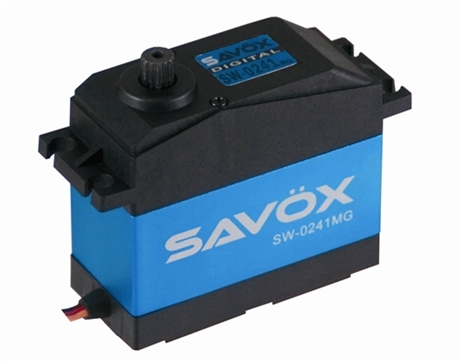

Savox - SW-0241MG Digital High Voltage Waterproof Servo, Metal Gear
Features:
- Leading edge digital servo technology
- Strong 3-Pole Brushed motor
- Accurate and fast response
- Fine resolution
- Aluminium center case for improved motor cooling and total strength
- Ball beared
- Precision Metal gears
- Waterproof
Technical specifications:
Servo Technology: Digital High Voltage
Input Voltage (V): 6.0V - 7.4V
Servo Type / Size: Jumbo
Motor Type: Brushed 3-Pole Motor
Gear Material: metal Gears
Ball Beared: Ball Beared
Servo Case: Aluminium - Composite
Speed 60°/Sec @ 7.4V: 0.17 Sec/60°
Torque kg/cm @ 7.4V: 40.0 Kg/cm
Length (mm): 65.8 mm
Width (mm): 30.0 mm
Height (mm): 59.0 mm
Weight (g): 200 g
Connector type: JR
Spline size: 15T Spline
