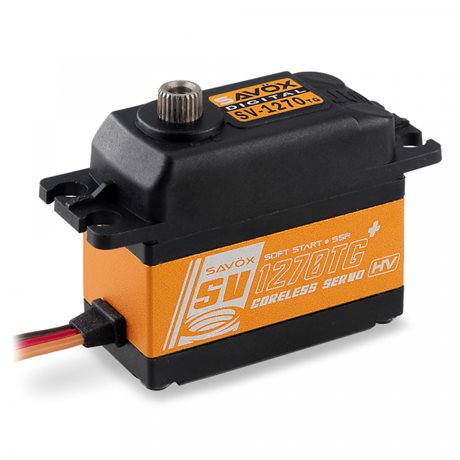

SAVÖX SV-1270TGPLUS - Monster Torque Titanium-Geared Standard-Sized Servo - PLUS/V2
This is the new updated Savox SV-1270TG+ Digital High Voltage "Monster Torque" Titanium Gear Servo. Built to handle extreme requirements - this servo delivers!
Features:
- NEW!Softstart Function
- NEW!Sanwa SSR compatible
- High Voltage
- Super strong, precision made, titanium gears provide durability that will survive heavy use
- Ideal for large-scale airplane, 1/8 truck, and Monster Truck applications
- The servo that racers desire
Specifications:
- Torque @6V: 30kg/cm
- Torque @7.4V: 40kg/cm
- Torque @8.4V: 45kg/cm
- Speed @6V: 0.14s/60°
- Speed @7.4V: 0.11s/60°
- Speed: @8.4V: 0.10s/60°
- Dimensions L x W x H: 40.3x20.2x37.2mm
- Weight: 64g
Technical Details:
- Operating Temperature: -10° to 50°C
- Running Current (no load): 120mA @6.0V, 150mA @7.4V
- Stall Current (at locked): 5500mA @6.0 V, 6800mA @7.4V
- Idle Current: 5mA @4.8V, 5mA @6.0V
- Wire Length: 200 ± 5mm
- Output Gear Spline: 25 Tooth
- Bearings: 2BB
- Operating Travel: 100° (1000 → 2000 µ second)
- Neutral Position: 1500 µ second
- Pulse Width Range: 800 → 2200 µ second
- Maximum Travel: Appx 130° (900 → 2100 µ second)
- Refresh Rate: 333 Hz
- Motor Type: Coreless
