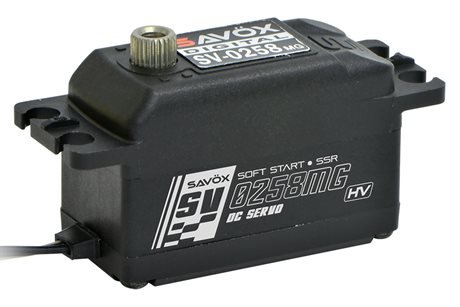

SAVÖX SAV-SV0258MG - SV-0258MG Low Profile Servo 8Kg 0.11s HV Hybrid Gears
Protection and Precision for Entry-Level RC
The SV-0258MG is engineered to work seamlessly with entry-level ESCs in RTR kits, limiting current draw to just 1.5A to prevent shutdowns and ensure uninterrupted driving. Its low-profile composite case saves space, while hybrid gears and digital electronics provide consistent, precise steering control.
It's ideal for RTR and 1/10 touring cars where both protection and performance matter.
Hybrid Metal/Composite Gears
Provides a balance of durability and weight savings for everyday and beginner use.
Low-Profile Compact Size
Measures only 40.8×20.2×27.75mm, making it a perfect fit for 1/10 touring cars and other compact builds.
Digital Precision Control
Equipped with a 10-bit digital PCB and VR potentiometer for smooth, accurate steering response.
Specs:
- Line: BLACK EDITION
- Application: CAR
- Servo Size: Low Profile
- Operating Voltage: 6V-7.4V
- Speed @6.0V: 0.13s/60°
- Torque @6.0V: 6.5kg/cm
- Speed @7.4V: 0.11s/60°
- Torque @7.4V: 8.0kg/cm
- Amplifier Type: Digital Controller
- Motor Type: DC
- Case Type: Composite
- Protection: Dust Resistant
- Dimensions: L40.8xW20.2xH27.7 mm
- Weight: 36g
- Gear Type: Hybrid (Metal/Composite)
- Compatibility: Sanwa SSR
- PCB Board: 10-bit
- Horn Gear Spline: 25T (Φ6)
- Rotating Direction: Clockwise (when 1000→2000μsec)
- Max Travel: ~140° (when 800→2200μsec)
- Operating Travel: 90° (when 1000→2000μsec)
- Neutral Position: 1500μsec
- Bearing: 2x Ball Bearings
- Potentiometer: VR
- Cable Diameter: 26AWG
- Cable Length: 250±5mm
- Connector: JR
- Stall Current @6.0V: 1500mA
- Operating Current @6.0V: 150mA
- Stall Current @7.4V: 1800mA
- Operating Current @7.4V: 180mA
- Idle Current: 6mA
- Dead Band Width: 3-5μsec
- Frequency Range: 50-360Hz
- Control System: Pulse Width Modification
- Operating Temperature: -10°C to 50°C
