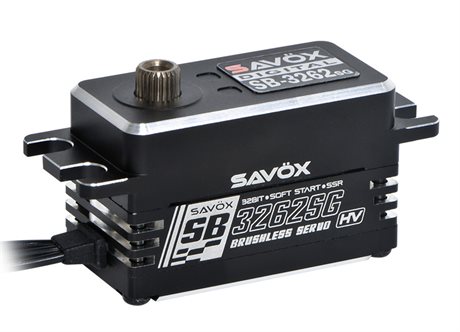

SAVÖX SAV-SB3262SG - SB-3262SG Servo 28Kg 0.08s HV Alu Brushless Steelgears Low Profile
Monster Line
The pinnacle of Team Savox engineering - the Monster Line features our most advanced servos, built for drivers, pilots, and racers who demand the absolute best in torque, speed, and durability. With high-voltage brushless motors, steel gears, and optimized internals, Monster Line servos dominate in everything from 1/8 racing to high-load surface builds and heavy-duty off-road. It’s performance without compromise.
SB-3262SG Lightweight Brushless
Introducing the SB-3262SG — a lightweight servo with a next-gen brushless motor that delivers more torque with less weight. Ideal for weight-conscious racers who need fast response and high output.
Specs:
- Line: MONSTER LINE
- Application: CAR / BOAT / AIRPLANE
- Servo Size: Low Profile
- Operating Voltage: 6.0V-8.4V
- Speed @6.0V: 0.1s/60°
- Torque @6.0V: 22kg/cm
- Speed @7.4V: 0.08s/60°
- Torque @7.4V: 28kg/cm
- Speed @8.4V: 0.065s/60°
- Torque @8.4V: 35kg/cm
- Amplifier Type: Digital Controller
- Motor Type: Patented Lightweight Brushless
- Case Type: Aluminium
- Protection: Water Resistant
- Dimensions: L40.8xW20.2xH25.4mm
- Weight: 53g
- Gear Type: Specialized Steel
- Compatibility: Sanwa SUR & SSR, Futaba UR & SR
- PCB Board: 32-bit
- Horn Gear Spline: 25T (Φ6)
- Rotating Direction: Clockwise (when 1000→2000μsec)
- Max Travel: ~130° (when 900→2100μsec)
- Operating Travel: 90° (when 1000→2000μsec)
- Neutral Position: 1500μsec
- Bearing: 2x Ball Bearings
- Potentiometer: VR
- Cable Diameter: 22AWG
- Cable Length: 300±5mm
- Connector: JR
- Stall Current @6.0V: 4500mA
- Operating Current @6.0V: 200mA
- Stall Current @7.4V: 5600mA
- Operating Current @7.4V: 220mA
- Stall Current @8.4V: 6300mA
- Operating Current @8.4V: 250mA
- Idle Current: 5mA
- Dead Band Width: 3-5μsec
- Frequency Range: 50-360Hz
- Control System: Pulse Width Modification
- Operating Temperature: -10°C to 50°C
