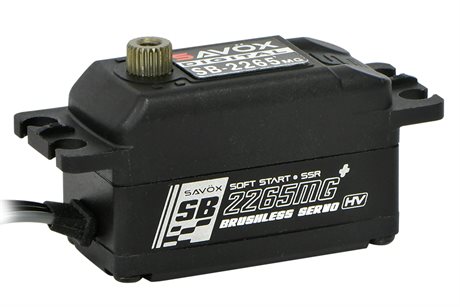

Discover the SB-2265MG+ in Detail
Curious about what makes the SB-2265MG+ stand out? In this video, Andy from Team Savox walks you through all the key features of this advanced low-profile brushless servo. From its high-voltage capability to its upgraded wiring and blazing-fast response, you’ll get an inside look at why it’s a top choice for competitive 1/10 on-road racers.
Designed as a high-performance evolution of the 2263, the SB-2265MG+ offers more torque, a longer 20cm cable, and full compatibility with Sanwa SSR & Futaba UR/SR for ultra-fast signal response. Whether you’re building a new chassis or simply want more power in a compact servo, this is the one to watch.
Black Edition
A sleek, all-black design applied to our most trusted servo platforms. Black Edition models take the proven internals from other Team Savox lines and wrap them in a clean, stealthy finish.
Perfect for clean builds, custom chassis, or anyone who wants standout performance with low-profile styling. Same power - just darker.
Specs:
- Line: BLACK EDITION
- Application: CAR / AIRPLANE
- Servo Size: Low Profile
- Operating Voltage: 6.0V-8.4V
- Speed @ 6.0V: 0.1s/60°
- Torque @ 6.0V: 10kg/cm
- Speed @ 7.4V: 0.08s/60°
- Torque @ 7.4V: 13kg/cm
- Speed @ 8.4V: 0.07s/60°
- Torque @ 8.4V: 17kg/cm
- Amplifier Type: Digital Controller
- Motor Type: Original Brushless
- Case Type: Hybrid (Aluminum/Composite)
- Protection: Water Resistant
- Size (LxWxH): 40.8x20.2x25.6mm
- Weight: 50g
- Gear Type: Heavy-Duty Metal
- Compability: Sanwa SUR, SSR; Futaba UR, SR
- PCB Board: 32-bit
- Horn Gear Spline: 25T (Φ6)
- Rotating Direction: Counterclockwise (when 1000→2000 μsec)
- Max Travel: ~130° (when 900→2100 μsec)
- Operating Travel: 90° (when 1000→2000 μsec)
- Neutral Position: 1500 μsec
- Bearing: 2x Ball Bearings
- Potentiometer: VR
- Cable Diameter: 22AWG
- Cable Length: 200mm ±5
- Connector: JR
- Stall Current @ 6.0V: 5000mA
- Operating Current @ 6.0V: 200mA
- Stall Current @ 7.4V: 6000mA
- Operating Current @ 7.4V: 220mA
- Stall Current @ 8.4V: 7000mA
- Operating Current @ 8.4V: 250mA
- Idle Current: 5mA
- Dead Band Width: 3-5μsec
- Frequency Range: 50-360Hz
- Control System: Pulse width modification
- Operating Temperature: -10°C to 50°C
