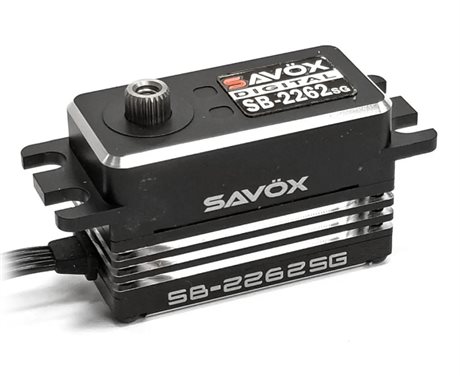

SAVÖX SB2262SG - Monster Torque Low Profile Steel Gear Servo 0.08s/25kg @ 7.4V
The powerful "Monster" performance series servos from Savox utilize an all aluminum case, and unique brushless motor and controller technology to boost power up to 35% over previous generation servos.
Features:
- Full Aluminum Case
- 2 Precision Ball Bearings
- Metal Gears
Specifications:
- Torque @ 6.0v: 18kg
- Speed @ 6.0v: 0.10s/60°
- Torque @ 7.4v: 25kg/cm
- Speed @ 7.4v: 0.08s/60°
- Torque @ 8.4v: 32kg/cm
- Speed @ 8.4v: 0.065s/60°
- Dimensions L x W x H: 40.8 x 20.2 x 25.75mm
- Weight: 62g
Technical Details:
- Operating Temperature: 14° - 122°F (-10° - 50°C)
- Running Current (no load): 180mA @6.0V, 200mA @7.4V, 220mA @8.4V
- Stall Current (at locked): 4500mA @6.0V, 5600mA @7.4V, 6300mA @8.4V
- Idle Current: 5mA @6.0V, 5mA @7.4V, 5mA @8.4V
- Wire Length: 300 +/- 5mm
- Output Gear Spline: 25 Tooth
- Bearings: 2BB
- Operating Travel: 90° (1000 → 2000 µ second)
- Neutral Position: 1500 µ second
- Pulse Width Range: 800 → 2200 µ second
- Maximum Travel: Appx 130° (900 → 2100 µ second)
- Refresh Rate: 333 Hz
- Motor Type: Brushless
