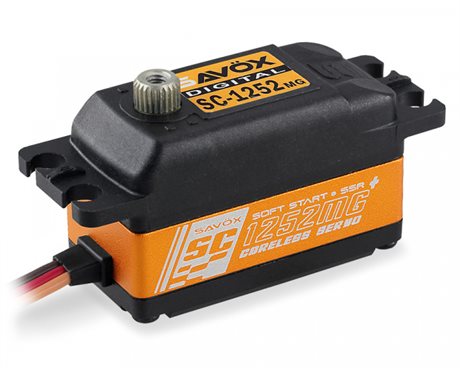

SAVÖX SC-1252MG Plus - Metal-Geared High-Speed Digital Low-Profile Servo V2
The SC-1252MG+ is a high speed, low profile servo which combines leading edge technology with super high 12 bit (4096) resolution. Ideal for 1/10 on-road cars where space is limited and speed is desired.
Features:
- Metal gear train ensures durability under harsh situations
- Ideal for 1/10 on road vehicles
- Aluminum case provides cooler operating temperatures
- New: SSR (Soft Start)
Specifications:
- Voltage range: 4.8-6.6V
- Torque @ 4.8V: 4.5kg/62.5oz-in
- Torque @ 6V: 7kg/97.2oz-in
- Speed @ 4.8V: 0.08 sec/60 deg
- Speed @ 6V: 0.07 sec/60 deg
- Dimensions L x W x H: 40.8 x 20.2 x 25.4mm
- Weight: 44.5g
Technical Details:
- Operating Temperature: -10° to 50°C
- Running Current (no load): 150mA @4.8V, 180mA @6.0V
- Stall Current (at locked): 2000mA @4.8V, 3000mA @6.0V
- Idle Current: 5mA @4.8V, 5mA @6.0V
- Wire Length: 300 +/- 5mm
- Output Gear Spline: 25 Tooth
- Bearings: 2BB
- Operating Travel: 90° (1000 → 2000 µ second)
- Neutral Position: 1500 µ second
- Pulse Width Range: 950 → 2050 µ second
- Maximum Travel: Appx 160° (700 → 2300 µ second)
- Refresh Rate: 240 Hz
- Motor Type: Coreless
