Passar till:
1/8 Off-Road

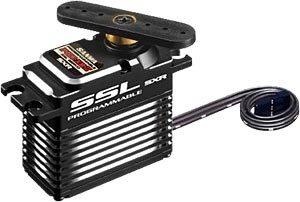

Bästa servot på marknaden för 1/8 Off-Road, programmerbart servo där du kan ställa in hastighet, vridmoment mm efter just din körstil!
●FH5U: SXR(SANWA XTREME RESPONSE) MODE-COMPATIBLE
●SSL-COMPATIBLE PROGRAMMABLE SERVO
# Compatible with CODE 10 (M12S, EXZES ZZ, MT-44)
Not Compatible with CODE 5 (M12, EXZES Z, MT-4S, MT-4, MT-S)
●PGS SETTING GEAR-COMPATIBLE
●SUPER RESPONSE (SSR) MODE-COMPATIBLE
●HIGH RESPONSE (SHR) MODE-COMPATIBLE
●Li-Po 2 CELL-COMPATIBLE
●HIGH TORQUE TYPE
●BRUSH LESS MOTOR
●FULL ALUMINUM CASE
●FULL METAL GEAR (Strengthening Gears)
●AL HEAT SINK
●Black Harness
Speed | 0.11 sec/60 (7.4V)
0.14 sec/60 (6.0V) | Torque | 21.1 kg/cm (7.0V)
17.9 kg/cm (6.0V) |
Dimensions | 40.5x20.5x38.7 mm | Weight | 72 g |
●Programmable Servo to be compatible with SSL & Telemetry at Launch
●Setting Adjustment by wireless from Radio
●Setting Adjustment to connect Servo with Setting Gear
●Regarding Temperature, Current, Voltage and Volume Position on Servo inside,
Telemetry-transmission can be passed to Radio.
# Initial Setting on Setting Gear is necessary.
★Setting Items
●SSL-CH (SSL Channel Setting) ●STRETC (Stretcher Adjustment) ●BOOST (BOOST Adjustment)
●D-Band (Dead Band Adjustment) ●MV-MID (Middle Torque Adjustment)
●MV-END (Later Torque Adjustment) ●BREAK (Break Adjustment)
◎MV-HOLD (Power Adjustment at whole area) ◎MV-FRQ (Feeling Adjustment at whole area)
◎MAX-PW (MAX Duty Adjustment)
※ Setting Gear is necessary for ◎setting.
●PGS-Servo Explanation
