1/10 On-Road & 1/10 Off-Road
Bästa servot på marknaden för 1/10 On-Road, programmerbart servo där du kan ställa in hastighet, vridmoment mm efter just din körstil!
TITC 1/10 Touring Modified Overall Result 2020
1. Akio Sobue (SANWA M17, PGS-LH2)
2. Jiles Groslamp (SANWA EXZES-ZZ, PGS-LH2)
3. Naoto Matsukura (SANWA M12S, PGS-LH2)
4. Viktor Wlick (SANWA M17, PGS-LH2)
5. Meen Vejrak (SANWA M12S)
6. Yamamoto Ryosuke (SANWA M17)
7. Nicholas Lee (SANWA M17)
8. Jin Sawada (Other)
9. Hayato Ishipla (Other)
10. Souta Goto (SANWA M17)
8 racers used SANWA transmitter in Top 10.
Total transmitter rate by manufacture is in the below.
SANWA: 70%
Other 1: 20%
Other 2: 9%
Other 3: 9%
Other 4: 2%

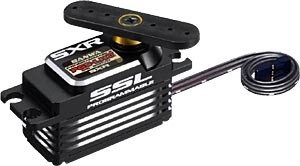

●FH5U: SXR(SANWA XTREME RESPONSE) MODE-COMPATIBLE
●SSL-COMPATIBLE PROGRAMMABLE SERVO
# Compatible with CODE 10 (M12S, EXZES ZZ, MT-44)
Not Compatible with CODE 5 (M12, EXZES Z, MT-4S, MT-4, MT-S)
●PGS SETTING GEAR-COMPATIBLE
●SUPER RESPONSE (SSR) MODE-COMPATIBLE
●HIGH RESPONSE (SHR) MODE-COMPATIBLE
●Li-Po 2 CELL-COMPATIBLE
●LOW PROFILED
●HIGH SPEED TYPE
●BRUSH LESS MOTOR
●FULL ALUMINUM CASE
●FULL METAL GEAR (Strengthening Gears)
●AL HEAT SINK
●Black Harness
Speed | 0.09 sec/60 (7.4V)
0.11 sec/60 (6.0V) | Torque | 15.6 kg/cm (7.4V)
12.8 kg/cm (6.0V) |
Dimensions | 40.2 x 20.5 x 26.0 mm | Weight | 53.0 g |
●Programmable Servo to be compatible with SSL & Telemetry at Launch
●Setting Adjustment by wireless from Radio
●Setting Adjustment to connect Servo with Setting Gear
●Regarding Temperature, Current, Voltage and Volume Position on Servo inside,
Telemetry-transmission can be passed to Radio.
# Initial Setting on Setting Gear is necessary.
★Setting Items
●SSL-CH (SSL Channel Setting) ●STRETC (Stretcher Adjustment) ●BOOST (BOOST Adjustment)
●D-Band (Dead Band Adjustment) ●MV-MID (Middle Torque Adjustment)
●MV-END (Later Torque Adjustment) ●BREAK (Break Adjustment)
◎MV-HOLD (Power Adjustment at whole area) ◎MV-FRQ (Feeling Adjustment at whole area)
◎MAX-PW (MAX Duty Adjustment)
※ Setting Gear is necessary for ◎setting.
●PGS-Servo Explanation
