1/10 On-Road
Programmerbart servo där du kan ställa in hastighet, vridmoment mm efter just din körstil.
Till 1/10 Off-Road krävs uppgraderingskit:
Uppgraderingskit:
09107A54543ASanwa PGS-CL Servo Upgrade Kit (Upper Case, Alu Bearings, Rubber Ring & Label)

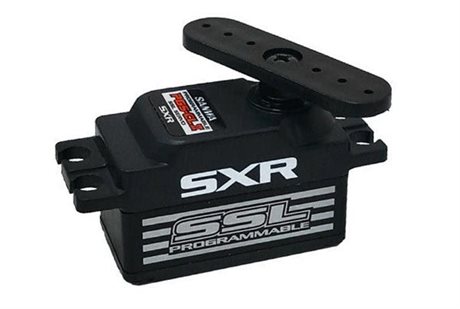

Low profile High Speed Digital , water proof servo
●FH5U: SXR(SANWA XTREME RESPONSE) MODE-COMPATIBLE
●SSL-COMPATIBLE PROGRAMMABLE SERVO
# Compatible with CODE 10 (M12S, EXZES ZZ, MT-44)
Not Compatible with CODE 5 (M12, EXZES Z, MT-4S, MT-4, MT-S)
●PGS SETTING GEAR-COMPATIBLE
●SUPER RESPONSE (SSR) MODE-COMPATIBLE
●HIGH RESPONSE (SHR) MODE-COMPATIBLE
●Li-Po 2 CELL-COMPATIBLE
●HIGH TORQUE TYPE
●BRUSH LESS MOTOR
●FULL ALUMINUM CASE
●FULL METAL GEAR (Strengthening Gears)
●AL HEAT SINK
●Black Harness
●Waterproof (Same as IPX4)
Speed | 0.08 sec/60 (7.4V)
0.11 sec/60 (6.0V) | Torque | 16.6 kg/cm (7.4V)
14.7 kg/cm (6.0V) |
Dimensions | 40.5 x 20.5 x 26.5 mm | Weight | 49.6 g |
●Programmable Servo to be compatible with SSL & Telemetry at Launch
●Setting Adjustment by wireless from Radio
●Setting Adjustment to connect Servo with Setting Gear
●Regarding Temperature, Current, Voltage and Volume Position on Servo inside,
Telemetry-transmission can be passed to Radio.
# Initial Setting on Setting Gear is necessary.
★Setting Items
●SSL-CH (SSL Channel Setting) ●STRETC (Stretcher Adjustment) ●BOOST (BOOST Adjustment)
●D-Band (Dead Band Adjustment) ●MV-MID (Middle Torque Adjustment)
●MV-END (Later Torque Adjustment) ●BREAK (Break Adjustment)
◎MV-HOLD (Power Adjustment at whole area) ◎MV-FRQ (Feeling Adjustment at whole area)
◎MAX-PW (MAX Duty Adjustment)
※ Setting Gear is necessary for ◎setting.
●PGS-Servo Explanation
