HV, Waterproof, Digital, Aluminium Case, Metal Gear, Ball Bearing, 29.5 x 14.0 x 31.4mm
Ersätter TRX-2080X.

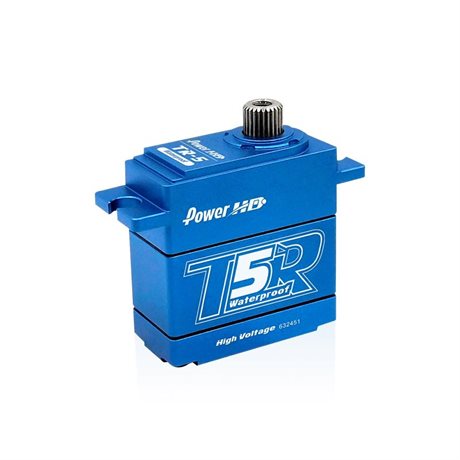

The TR-5 is a waterproof all-metal mini high voltage servo from Power HD. It is perfectly compatible with Traxxas 1/16 series cars and other small-scale model cars and boats which require waterproof functions. With a 18cm wire coming out from the base of the servo, the output spline is a standard 25T which is compatible with the original Traxxas servo horn. Compatible with 4.8V-8.4V, at 7.4V input the servo pulls up to 8kg-cm of torque at a speed of 0.07s.
Torque(4.8V): 3.8 kg-cm ( 52.8 oz/in)
Torque(6.0V): 6.0 kg-cm ( 83.3 oz/in)
Torque(7.4V): 8.0 kg-cm ( 111.1 oz/in)
Torque(8.4V): 8.8 kg-cm ( 122.2 oz/in)
Speed: 0.11 sec (4.8V) │ 0.09 sec (6.0V)
Speed: 0.07 sec (7.4V) │ 0.06 sec (8.4V)
Operating Voltage：4.8 ~ 8.4 DC Volts
Max Current：7.4V 2.0A
Gear Type：Titanium & Steel
Spline：25T
Weight: 35.0 g (1.23 oz)
Size：29.5 x 14.0 x 31.4 mm ( 1.16 x 0.55 x 1.24 in)
