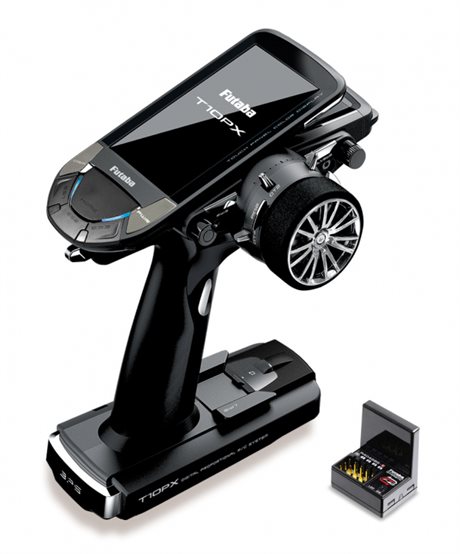

Futaba T10PX Radio System F-4G/T-FHSS/S-FHSS with R404SBS-E Diversity Receiver
Futaba's high-end model 7PX series for cars & boats, which is favored by many of the world's top drivers. Taking over that DNA, a new "T10PX" was born.
With the new communication F-4G, the maneuvering feeling recognized by the world champion has improved! Furthermore, telemetry communication, which was not possible with T-FHSS SR communication, can now be used. With the new function "Feeling", it feels like it suits each driver! Supports up to 10 channels that firmly catch the hearts of scale enthusiasts. Please enjoy Futaba's highest grade model on the circuit.
- Lightest in class & high balance design
- High-speed response F-4G new system installed
- "Feeling" - New response adjustment function
- Supports up to 10 channels
- Wide viewing angle full-color LCD adopted
- Menu icon adopted
- Can be used as a game controller by adopting a USB external output terminal
- New wheel unit / APA / APA angler / trigger adopted
- Throttle and steering spring replacement mechanism adopted
- New shape multi-position grip rubber
- Paddle shift lever switch + bottom switch + 3 position switch adopted
- Supports left-handed specifications
- LiFe battery FT2F1100B included
- Optional Lipo battery LT2F2000B can be used
T10PX Functions Overview:
Full color touch screen
LCD T10PX has an HVGA 4.3 inch, full-color, backlit LCD touch screen. The screen is transflective which enables both indoor and outdoor visibility.
F-4G system & telemetry
The 10PX is equipped with an F-4G system that enables telemetry with faster response than the T-FHSS SR system.
SR Mode (Super Response)
Equipped with SR mode, which has a significantly improved response compared to conventional. SR servo is required to use SR mode.
10 channels Up to 10 channels can be operated by using the S.BUS2 system together.
T-FHSS MINIZ system
By setting to the MINIZ system in the receiver setting menu, you can use Kyosho Mini - Z Evo dedicated receiver RA-42. Dedicated receiver RA-42 requires purchase separately.
Update-able software
The software can be updated by microSD card. Model data can also be saved in a microSD card. In addition, telemetry log data can be saved.
Model memory for 40 models
Model names can use up to 15 letters, numbers, and symbols, so that logical names may be used. A model memory with different setups can be created by using the model copy function.
Paddle switch + bottom switch + 3 position switch
A paddle switch near the wheel, a 3-position switch on the grip, and a bottom switch on the bottom are equipped to support multiple channels and functions.
Lipo battery can be used
The optional LT2F2000B Lipo battery can be used as the transmitter power supply. The running time is extended.
Brake mixing for large-scale cars
Brake mixing of the front and rear wheels of 1/5GP and other large cars can be adjusted independently. Steering mixing Smooth cornering is possible by the independent left and right steering servo setting.
4WS mixing for crawlers and other 4WS type
This function can be used with crawlers and other 4-wheel steering type vehicles. Dual ESCs mixing for crawlers ESC at the front and rear are controlled independently. Gyro mixing The sensitivity of Futaba car rate gyros can be adjusted from the T10PX. Tank mixing This function is intended for vehicles such as tanks.
CPS mixing
LED lighting and flashing control using our CPS-1 channel power switch can be matched to steering and throttle operation by switch only.
S.BUS servo
This is a special function that allows setting of the parameters of our S.BUS servo whose settings are changed by using PC Link software.
MC-Link
This is a dedicated function which allows setting of the contents of the Link software which makes possible Futaba speed controller (ESC), MC960CR, MC950CR, MC850C, MC851C, MC602C, MC402CR, etc. variable frequency and other data changes by PC at the T10PX.
Throttle Speed
Sudden trigger operation on a slippery road surface will only cause the tires to spin and the model to not accelerate smoothly. By setting the throttle speed function, operation can be performed smoothly and easily. It also suppresses battery consumption.
Steering Speed
When you sense that the steering servo is too fast, etc., the servo operating speed (direction that suppresses the maximum speed) can be adjusted.
Non-telemetry LED
When the telemetry function is OFF to confirm that the telemetry function is not operating.
Dial select function
This function assigns functions to dials (digital trim, grip dial, knob). The step amount and operating direction can also be adjusted. Trim positioning at each model call is unnecessary because all the dials are digital.
Switch select function
This function assigns functions to 10 switches. The operating direction can also be set.
Wheel & Trigger position can be changed
- The wheel position can be offset by using an accessory APA wheel position offset adapter.
- The wheel angle can also be adjusted.
- The position of the throttle trigger can be moved forward and backward.
- Left handed position is supported
Rubber Grip
It is possible to convert to a narrow grip type by exchanging the rubber grip.
Trim/dial lock functions
Lock functions which prohibit setting and operation by transmitter trim, and dials are provided.
Left-handed support
The left and right installation direction of the wheel section can be reversed. Vibrator built into the grip The vibrator can be operated at racing timer lap navigation, time-up, and low battery, telemetry alarm. It sets it on each function screen.
USB port
The transmitter can be used as a game controller by connecting it to a computer with a USB cable. (Some games cannot be used.)
Included*:
- T10PX Transmitter
- R404SBS-E Receiver (EP cars)
- Dry battery holder (Installed in transmitter)
- Wheel offset adapter two size (APA)
- APA Mounting screws (Spare screws are also included)
- Wheel adapter 32 deg
- Wheel Angle spacer 5 deg
- Large diameter steering wheel
- Trigger guard (Lx1 / Rx1)
- Grip rubber x1
- Blind paddle x2
- Hex wrench
- Short printed manual (Full manual only as PDF - click on the download tab to download)
*The contents of the set can change
Specifications - T10PX Transmitter:
Wheel system, 10 channels (F-4G System), 7 channels (SFHSS System), 4 channels (TFHSS-SR, T-FHSS systems)
- Transmitting frequencies 2.4GHz band
- Transmitting RF power output: 100 mW EIRP
- Futaba F-4G/T-FHSS SR/T-FHSS/MINI-Z T-FHSS/S-FHSS
- Transmitting antenna 1/2λdipole
- 4.3 inch backlighted color TFT liquid crystal touch panel.
*When you turn on your 10PX, bright dots may appear on your screen display. Your display contains an extremely large number of TFT and is manufactured using high-precision technology. Any bright dots that may appear on your display are intrinsic of the TFT manufacturing technology.
Specifications R404SBS-E (Included - for Electric Cars Only):
- Receiving frequency: 2.4GHz band
- Telemetry Receiver RF power output: 2.2 mW EIRP
- Power requirement: 3.7 V~7.4 V battery (Dry cell battery cannot be used.)
- System: F-4G system/S.BUS2 system
- Size: 25.5x20.7x10.6mm (includes a 30.5mm high antenna housing)
- Weight: 7.2g
Specifications R404SBS Receiver (Optional):
- Receiving frequency: 2.4GHz band
- Telemetry Receiver RF power output: 1.02 mW EIRP
- Power requirement: 3.7 V~7.4 V battery (Dry cell battery cannot be used.)
- System: F-4G system/S.BUS2 system
- Size: 25.5x20.7x10.6mm
- Weight: 5.7g
Usable sensor options (As of October 2021):
- Temperature sensor (SBS-01T) Perfect for engine head, etc.
- Temperature sensor (SBS-01TE) Used by attaching to a motor, etc.
- RPM Sensor (SBS-01RM) Measures speed over the 360 to 100,000rpm range.
- Brushless type RPM Sensor (SBS-01RB) Measures speed over the 360 to 300,000rpm range.
- Voltage Sensor (SBS-01V) Measures external power supply voltages up to 100V.
- Current sensor (SBS-01C) Measures external power supply voltages up to 70V, capacity and consumption capacity
- GPS sensor (SBS-01/02G) Detect the GPS and measure the position and speed of the car body.
- Compatibility with non-Futaba sensors (Castle TL0). (Refer to the sensor instruction manual for more information.)
System Type:
- F-4G
- T-FHSS
- T-FHSS SR
- T-FHSS (Mini-Z)
- S-FHSS
Hardware:
- LCD: 4.3" TFT-LCD WQVGA (wide viewing angle)
- LED: Blue
- Sound: Speaker / Earphone Jack
- Vibrator: Yes
- Switch: 7x Push switch, 1x Push lock switch & 1x Slide switch
- Trim: 6x Digital trim & 1x Dial trim
- Edit Key: Touch panel & 4x Push switch
- Display Switch: Yes
- Wireless charger (option): Yes
Battery (optional):
- Li-Fe 2cells 6.4V 1700mAh
- Ni-MH 5cells 6.0V 1800mAh
- LiPo 2cells 7.4V 2000mAh
Software:
- D/R & ATL: Steering, Throttle (forward) & Throttle (brake)
- Steering Speed: Turn & Return
- Throttle Speed: Turn, Return & Point (2 points)
- Steering Curve: EXP, VTR & CRV (21 points)
- Throttle Curve: EXP, VTR & CRV (21 points)
- Brake Curve: EXP, VTR & CRV (21 points)
- Fail-Safe (all channels): OFF, Fail-safe, Hold, Battery fail-safe (variable voltage)
- EPA: EPA (all channels) & EPA trim
- Sub Trim: All channels
- Channel Reverse: All channels
- Trim: All channels
- Throttle Mode: 50:50, 60:40, 70:30 & 100:0
- ABS: Return, Delay, Cycle speed, Duty ratio, Trigger point & Trigger point reverse
- Traction Control: Yes
- Idle Up: Yes
- Neutral Brake: Yes
- Acceleration: Yes
- Start: Yes
- Engine Cut: Yes
- AUX Channel: CH3-10
- 4WS Mixing: Front/Reverse/Normal/Rear
- Dual ESC: Yes
- Brake Mixing: Yes
- Steering Mixing: Yes
- Tilt Mixing: Yes
- Gyro Mixing: Yes
- CPS Mixing: 3
- Programmable mixing: 5, EXP, VTR, CRV (21 points)
- Telemetry Mixing: Yes
- Tank Mixing: Yes
- Channel Limiter: All channels
- Timer: Up timer, Down timer, Lap timer, Lap navigate timer & Lap list (80 laps)
Telemetry:
- Temp. sensor
- RPM sensor
- Voltage sensor
- Current sensor
- GPS
- ESC (Castle TL01, MC970CR)
- Voice alarm
- Recording log
- Telemetry Mixing (Programmable mixing)
Other:
- Model Select: Yes
- Model Name: Yes
- Model Copy: Yes
- Data Reset: Yes
- Condition: 4 different & Condition copy
- User Menu: Yes
- Servo View: Yes
- Display setting: Brightness
- LED setting: Mode (Off / always on / backlight) & Brightness
- Adjuster: Yes
- User Name: 15 characters
- Auto Power Off: Yes
- Updates: Yes
- Receiver Updates: R404SBS & R334SBS
- Roll out chart: Yes
- Gear ratio chart: Yes
- Servo setting: Wired & Wireless
- MC Link: Wired & Wireless
System menu
- Display settings
- System information
- Voice
- Battery settings
- Date and time
- LED settings
- Adjuster
- Receiver update
- Servo update
Model menu
- Model select
- Model copy
- Model name
- Model deletion (in SD card)
- Data reset
- Model type *New function
Setup menu
- Receiver settings
- Servo view
- Throttle mode
- Reverse
- Sub trim
- Endpoint
- Fail-safe function
- Acceleration
- Trim / dial settings
- Switch settings
- Condition
- Idle-up
- D/R, ATL
- Channel limiter
- Channel settings
Racing menu
- Curve (EXP) 111
- Speed
- Traction control
- A.B.S.
- Start
- Engine cut
- Feeling *New function
Mixing menu
- Steering mixing
- Brake mixing
- Gyro mixing
- 4WS mixing
- Dual ESC
- CPS mixing (1.2.3)
- Tank mixing
- Program mixing (1.2.3.4.5)
- Tilt mixing
Telemetry menu
- Telemetry system
- Telemetry
- Sensor list
- Sensor menu
Accessory menu
- Timer
- Wrap list
- S.BUS servo
- MC (ESC) link
- Gyrolink
- Index table
- Gear ratio table
- Home / ES1 / ES2 / ES3 button settings
- Home screen display settings
