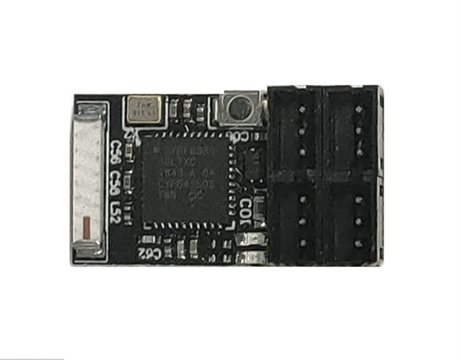

This RC receiver unit is Sanwa FHSS-4 and FHSS-3 compatible. It offers full 4-channel support in ultra- light weight and micro size. It is ideal for micro racing cars.
Voltage: 3.3V～8.4V
Channels: 4CH
Weight: 2g
Dimension: 21×12mm
PWM Mode: Normal/ SHR/ SSR
Compatibility
Compatible with FH4T no FH3 remote control system.
Suitable for remote control M12,M11X,EXZES X,MT-4,GEMINI X,MT-S,MT-4S,M12S,EXZES-ZZ,M17.
Bind
- Press the BIND button and power on the receiver, the receiver’s led will flash quickly.
- Put the transmitter into bind mode.
- The receiver’s led will flash slowly when the binding is successful.
- Disconnect receiver’s power and reconnect the power cable to the receiver.
- Now is should working normally.
