Description

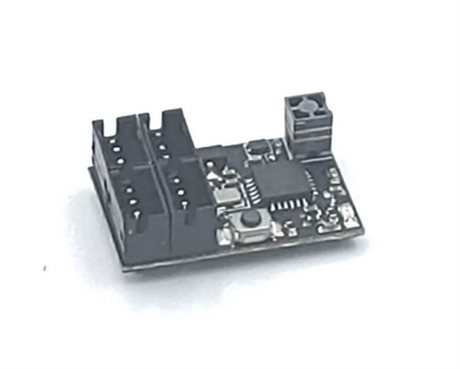

The 2.4GHz 4-Channel FHSS5 SSL Telemetry Receiver uses a tower antenna with exceptional range and response time. With a lightweight design and a small footprint, this receiver is great for Mini-z scale electric RC cars.
Features:
1. Sanwa 2.4GHz FHSS5U/FHSS5 Spread Spectrum System compatible
2. Compatible with SSL (SUPER VORTEX Series, etc...)
3. Ultra Response Mode (SUR)
4. Extreme Response Mode (SXR)
5. Dual ID system (able to bind with 2 transmitters)
6. Micro size (19mm x 12 mm)
7. Operating Voltage 3.5V - 8.4V
8. Weight: 2g
Indicator Function compatible:
Indicator function can be checked signal strength connected transmitter. The indicator function can be used for finding problems as incorrect receiver placing and finding the best receiver position for transmitter. Indicator function can be checked signal strength without any effect with response.
NOTE:
RPM sensor (SNW107A41061A) and temperature sensor are not compatible
RPM and temperature telemetry are only capable with the Sanwa Super Vortex series
FH5U RF mode is not capable to use telemetry
SXR response mode is only compatible with transmitter M17.
Compatible Transmitters:
Sanwa M17
Sanwa MT-5
Sanwa MT-R
Bind
- Press the BIND button and power on the receiver, the receiver’s led will flash quickly.
- Put the transmitter into bind mode.
- The receiver’s led will flash slowly when the binding is successful.
- Disconnect receiver’s power and reconnect the power cable to the receiver.
- Now is should working normally.
