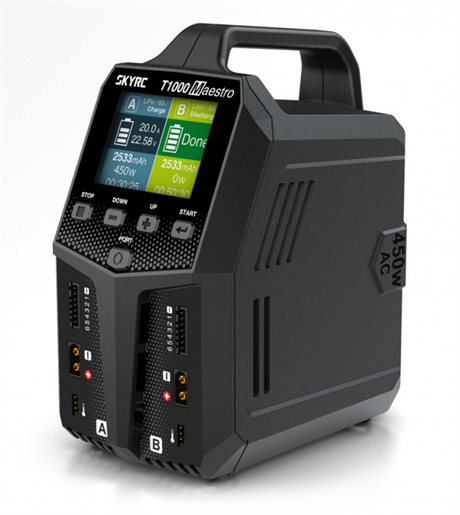

SkyRC T1000 Maestro Charger
Arm® Cortex®-M4 and HyperBoost Power Couple
Supercharged by ARM Cortex®-M4
Push your next RC racing trip beyond the edge with SkyRC T1000! The Arm Cortex-M4 chip takes our most versatile, dual output T1000 into another dimension with a built-in DSP instruction. The chip core features a Floating Point Unit (FPU) that accelerates single precision floating point math operations and supports all ARM single precision instructions and data types.
Multiplied by Proprietary HyperBoost
Thanks to the 200 MHz ARM Micro controller, the deployed Oversampling Technology can improve ADC Resolution to 16bit. The efficient PID mechanism can fine-tune the current to increase response speed and the charge current accuracy.
AC/DC Dual Input. Efficient. Beyond.
- Dual ports work independently to charge two battery packs efficiently and simultaneously. RC hobbyists can flexibly choose AC or DC input according to the scenarios.
- In AC mode, the charging power is up to 450W, while the performance is even more powerful, up to 1000W in DC mode. Whether you are a beginner or an RC guru engaging in racing, it is the charger to push the limits of what is possible!
Smart Power Distribution
When a single port works, the T1000 will be pumping full power into that port! The charging power is dynamically and intelligently distributed in the circumstance that two ports work at the same time. Whenever either port finishes working, the other port will fully charge at full power. The total power is always used intelligently and efficiently! Charging is so flexible!
Short circuit, Overload, and Reverse polarity protection are all included!
Digital Power
T1000 is not only professional in charging but also can act as a digital power supply. After clicks on the menu, T1000 is ready for your application, offering an optimal voltage of 5-27V with 0.1V increment, adjustable 1-15A current. Short circuit, Overload, and Reverse polarity protection are all included!
Discharger, PD Hub & T1000. Dream Team
The newly-released BD350 (sold separately) discharger boasts a maximum discharge current of 40A when working with T1000. Rapid discharging at such a rate is definitely your cutting edge.
PCH-150 Power Charging Hub
The 1A3C PD Power Charging Hub is specially designed for RC hobbyists, with a full load power of 150W. The design incorporates a precision aluminum unibody enclosure that is strong, light, and durable with high thermal conductivity. Its thermal conductivity is more than that of ordinary die-casting aluminum.
Battery Health, Benchmarking
When working with BD3504, the T1000 charger can use the tailored SkyRC Charger Master3 to view or export the battery's discharge curve in real time. Various batteries' discharging curves can be plotted for precise comparison and analysis, so defective batteries have nowhere to hide.
ColorX: Easy to charge, Easy on the eyes.
Discover a new ColorX interface introduced by T1000 based on simple and textured visuals! The tailor-designed light cyan and green color scheme is for RC charging. It helps you focus on the setting. The Web2.0 responsive menu and well-designed icons make the operation more suitable for players accustomed to operating smartphones! Time to say bye-bye to dull typography and welcome bold and beautiful brand-new UI. Charging doesn't have to be boring, and neither does life!
Charge it cool.
Within the sleek enclosure lies a groundbreaking thermal system designed to let Arm Cortex-M4 fly through heavy workloads at screaming-fast speeds — and stay whisper quiet. The fan will adjust the speed accordingly and dissipate heat more effectively according to the different power usage.
Charge in your language
ColorX is designed to be easily localized and comfortably engaged. The interface is currently available in English, Dutch, Chinese and Japanese. Users can easily change the language with simple clicks so that they can charge in the most comfortable language.
Portable. Stunningly Sleek.
With the classic, minimal, and sleek vertical tower design, T1000 frees up more bench space for RC hobbyists to tweak gadgets by taking the footprints of a pair of battery packs. Sleek design serves your charging and delights your charging! The ergonomic handle makes it easy to store, carry, and travel with.
We are Certified, We are Qualified!
SkyRC products comply with the laws and regulations into each country we ship. Our products are designed, tested and approved to meet worldwide standards for Product Safety, Electromagnetic Compatibility and other regulatory compulsory requirements, when used for their intended purpose.
Universal Voltage. Travel On the Go.
With the universal-voltage input circuit, you don't need to hassle finding a voltage converter between 110V and 220V while traveling around!
Unleash Superpower with Cutting Edge Charger Master
Connected to PC or Mac* through USB-C, you can monitor and control T1000 with SkyRC Charger Master3. You can also update the charger like OTA, and synchronize the latest software in real-time with our cloud. Dis/charging data can be analyzed and displayed in a graph.
*Charger Master for Mac will be released in 2023!
Specifications:
- Case Material: Plastic
- Case Size: 190.3x153.5x100mm
- Weight: 1370g
- Display Type: Color X
- DC Input Voltage: 10-30V
- AC Input Voltage : 100-240V
Charger power:
- AC: 450W MAX
- DC: 1000W MAX
Discharge power:
- Main port: 10W
- Balance port: 37W MAX
- External discharge: 350W MAX
Batteries:
- Battery Types/Cells:
- LiPo/LiHV/LiFe/LiIon: 1-6cells
- NiMH/NiCd: 4-15cells
- Pb: 3S/6S/12S
Charge currents:
- LiPo/LiFe/LiIon/LiHV/NiMH/NiCd/Pb：0.1-20.0A
- Parallel：20.0-35.0A
Discharge currents:
- LiPo/LiFe/LiIon/LiHV/NiMH/NiCd/Pb：0.1-2.0A
- External discharge：0.1-40A
Balance current
- LiPo/LiFe/LiIon/LiHV：1.5A MAX
Operation:
- LiPo/LiFe/LiIon/LiHV: Balance, Charge, Discharge, Storage, Parallel
- NiMH/NiCd: Charge, Cycle, Re-peak, Discharge
- Pb: Normal, AGM Charge, Cold Charge, Discharge
