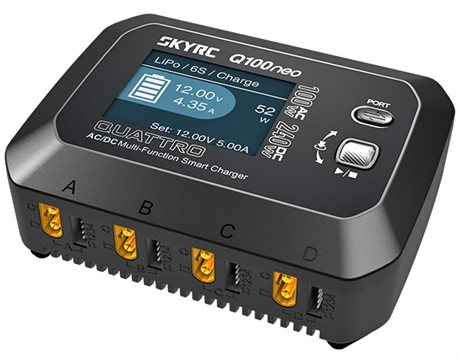

SKYRC SK100223-01 - Q100neo Charger/Discharger AC 100W / DC 200W
SkyRC Q100neo is a compact, high-performance charger designed for RC enthusiasts. It supports a wide range of battery types, including LiPo, LiFe, Li-ion, LiHV, NiMH, NiCd, and Pb. Offering up to 100W charging power on AC and 200W on DC, it delivers fast and precise charging with a user-friendly ColorX interface and a precision aluminum scroll wheel. The charger features advanced safety protocols like thermal cut-off and reverse polarity protection.
Pure Power. Precise Control. Quad Output.
Q100neo powers four independent outputs, each up to 6A, to charge multiple chemistries at once. From drone soccer to FPV to RC racing, it keeps every pack ready—cutting downtime so you’re back in action faster. With 600 mA balance current and ±0.02 V precision, efficiency and accuracy are built in. Charging redefined. Effortless, every time.
Compact Size. Mighty Power.
Q100neo arrives in a bold new design—small in size, yet brimming with performance. Agile and tough, it delivers up to 100W on AC and 240W on DC. Whether plugged in indoors or powered by DC in the field, Q100neo unleashes instant energy to bring your batteries back to full strength—fast.
AC/DC Flex. Fast, Unleashed.
Switch seamlessly between AC or DC, adapting to any setup with ease. Whether you’re just starting out or chasing the podium, Q100neo delivers stable performance every time. One charger. Endless scenarios.
Do More With One Charger! Multiple Chemistries Go.
With exceptional versatility, Q100neo can charge a wide range of battery chemistries. This powerhouse can charge everything from LiPo and LiFe to Li-ion, LiHV, Pb, NiMH, and NiCd. Unlock the full potential of your battery arsenal with Q100neo– versatility multiplied capability.
Discharging Multiplied by Balance Port
The built-in balance port enables Q100neo to discharge faster, allowing it to discharge at up to 15W when used in conjunction with the main port. In contrast, the discharge rate when using the main port alone is limited to just 5W.
So. Pro. So is Digital Power
Q100neo excels not only in charging, but also as a versatile quad output digital power supply. With just a few clicks on the menu, Q100neo offers a voltage option, from 1.0V to 30.0V, with an adjustable increment of 0.1V. Additionally, the current can be adjusted from 0.1A to 6.0A, with a precision of 0.1A. This quad output digital DC power supply provides four independently controllable power outputs, making it a versatile tool for various RC testing and prototyping applications.
Smart Power Distribution Seamless Charging Flexibility.
Under AC input, when two ports are in use, Q100neo will provide maximum power output to that specific ports. The charging power is distributed dynamically and intelligently when all four ports are simultaneously in use. Once a particular port has completed its charging task, the remaining port(s) will receive increased power for faster charging. This intelligent and efficient allocation of power ensures optimal utilization at all times. The charging capabilities of Q100neo are highly flexible, allowing for versatile charging options.
Rectifier Circuit, Efficiency Multiplied
The Q100neo uses a proprietary rectifier circuit to efficiently convert DC into safe D/C power for battery charging. And its onboard MCU precisely controls the charging to minimize power loss to create an incredibly compact form factor.
Specs:
- Case Size: 140x108x43.5mm
- Weight: 491g
- Display Type: TN
- Display Size: 2.8 inch
- Panel Active Area: 43.20*57.60mm
- Resolution: 240x320 Pixel
- Number of Colors: 262K
- AC Input: 100V ~ 240V（50Hz/60Hz）
- DC Input: 10V~30V
- Operating temperature: 0℃-40℃
- Working humidity: 5% ~ 75% RH (Non-condensing)
- Storage temperature: -10℃ ~ 70℃
- Storage humidity: 5% ~ 75% RH (Non-condensing)
Charge Power:
AC Input: 100W(±10%)
- 1 port: Max. 60W
- 2 ports: 50W + 50W
- 3 ports: 33W + 33W + 33W (Total power divided by 3)
- 4 ports: 25W × 4
DC Input: 240w(±10%) 60W *4
Discharge Power:
- Main port: 5W
- Balance port: Max. 10W（LiPo/4S）
- Charge Current: 0.1A~0.5A（±0.1A）- 0.6A~6.0A（±10%）
- Balance Current: Max. 600mA
Working Mode:
- LiPo/LiFe/Li-ion/LiHV: Balance CHG, Charge, Discharge, Storage
- NiMH/NiCd: Normal, Discharge, Repeak, CYCLE_D_C, CYCLE_C_D
- Pb: Normal, AGM Charge, Cold Charge, Discharge
Battery Types/Cells:
- LiPo/LiHV/LiFe/LiIon: 1-4S
- NiMH/NiCd: 1-8S
- Pb: 3S/6S
