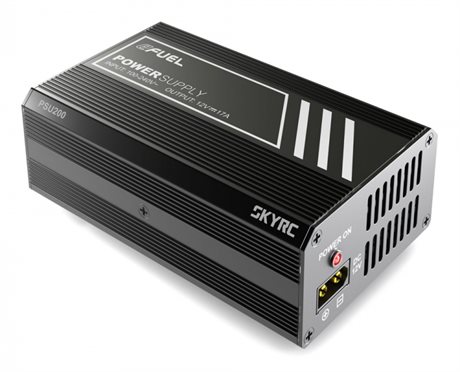

SKYRC 200W POWER SUPPLY
Built for most demanding pocket chargers
Converts standard household power 100-240V AC to 12V DC power and supply up to 17 amperes of continuous power.
Small in size, big on power
Though in a tiny body, PSU200W delivers over 93% power efficiency to pump enough power for RC hobbyists!
Safe and Reliable:
- Short-circuit protection on output
- Over Current Protection
- Over Temperature Protection
- Over Load Protection
- Over Voltage Protection
Generic XT60 Connector
With the almost de facto standard of XT60 connector, reverse polarity preventing and the super-solid connection is secured!
Intelligent Air Cooling System
Thermal Controlled 8000rpm high-speed sleeve bearing cooling fan effectively blows the air through the extruded aluminum heat sink, effectively cooling the device
Overload/Error Indication
The LED indicator turns off whenever the device connected to the Power Supply is drawing more power than it can provide. The power supply will shut down its output to protect its circuitry from damage, then reset automatically.
Specifications:
- Case Size：112x71x40.3mm
- Weight：380g
- Voltage：100-240V
- Input AC Frequency：50-60Hz
- Output Current：17A
- Output Voltage：12V DC±0.5V
- Output Voltage Ripple：<300mV
- Power Efficiency：93%
- Power Factor：>0.98
Protection:
- Current Overload Protection：>17A
- > Over Temperature Protection：>105℃
- Cooling Method：Cooling Fan
Enviroment:
- Operating Temperature：0-40℃
- Operating Humidity：10%-90
