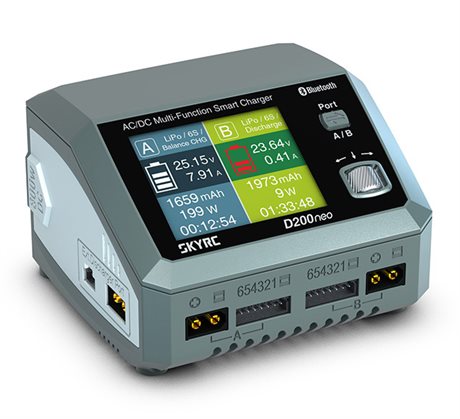

SkyRC D200neo - AC/DC Multi-Function Smart Charger
Supercharged by Arm® Cortex®-M4
Push your next RC racing trip beyond the edge with SkyRC D200neo! The Arm Cortex®-M41 chip takes our most versatile, dual output D200neo into another dimension with a built-in DSP instruction. The chip core features a Floating Point Unit (FPU) that accelerates single precision floating point math operations and supports all ARM® single precision instructions and data types.
Multiplied by Proprietary HyperBoost
Thanks to the 200 MHz ARM Micro controller, the deployed Oversampling Technology can improve ADC Resolution to 16bit. The efficient PID mechanism can fine-tune the current to increase response speed and the charge current accuracy.
AC/DC Dual Input. Efficient. Beyond.
Dual ports work independently to charge two battery packs efficiently and simultaneously. RC hobbyists can flexibly choose AC or DC input according to the scenarios.
In AC mode, the charging power is up to 200W, while the performance is even more powerful, up to 800W in DC mode. Whether you are a beginner or an RC guru engaging in racing, it is the charger to push the limits of what is possible!
Parallel Charging: Fast. And Vast.
D200neo features dual-port parallel charging, with a fast charge current of up to 35A. Enjoy your racing time, the screaming-fast D200neo has your back!
Your battery packs have been fully charged while you are still brewing coffee! That is how you get supercharged by co-designing hardware, software, and MCU.
Smart Power Distribution
When a single port works, the D200neo will be pumping full power into that port! The charging power is dynamically and intelligently distributed in the circumstance that two ports work at the same time. Whenever either port finishes working, the other port will fully charge at full power.
The total power is always used intelligently and efficiently!
So. Pro. Digital Power.
D200neo is not only professional in charging but also can act as a digital power supply. After clicks on the menu, D200neo is ready for your application, offering an optimal voltage of 5-27V with 0.1V increment, adjustable 1-15A current. Short circuit, Overload, and Reverse polarity protection are all included!
Discharger, PD Hub & D200neo. Dream Team.
The newly-released BD350* discharger boasts a maximum discharge current of 40A when working with D200neo. Rapid discharging at such a rate is definitely your cutting edge.
*BD350 & PD Power Charging Hub are optional parts and need to be purchased separately.
Battery Health Benchmarking
When working with BD3504, the D200neo charger can use the tailored SkyRC Charger Master3 to view or export the battery's discharge curve in real time. Various batteries' discharging curves can be plotted for precise comparison and analysis, so defective batteries have nowhere to hide.
*BD350 & PD Power Charging Hub are optional parts and need to be purchased separately.
PD Strip for RC Gurus
The PCH-150 Power Charging Hub (sold separately) is specially designed for RC hobbyists, with a full load power of 158W. The design incorporates a precision aluminum unibody enclosure that is strong, light, and durable with high thermal conductivity. Its thermal conductivity is more than that of ordinary die-casting aluminum.
20W USB-C Power Delivery
D200neo features USB-C 3.0 Power Delivery (PD) to efficiently charge your 2020 MacBook Air at full speed, iPad Pro M1 and iPhone 13 series up to 3× faster than with an original 5W charger.
The charger can supply DC power and pump electricity to your juice packs at the same time!
Unleash Superpower with Cutting Edge Charger Master
Connected to PC through USB-C, you can monitor and control D200neo with SkyRC Charger Master software (PC). You can also update the charger like OTA, and synchronize the latest software in real-time with our cloud. Dis/charging data can be analyzed and displayed in a graph.
ColorX: Easy to charge, Easy on the eyes.
Discover a new ColorX interface introduced by D200neo based on simple and textured visuals! The tailor-designed light cyan and green color scheme is for RC charging. It helps you focus on the setting. The Web2.0 responsive menu and well-designed icons make the operation more suitable for players accustomed to operating smartphones! Time to say bye-bye to dull typography and welcome bold and beautiful brand-new UI.
Charge in your language
ColorX is designed to be easily localized and comfortably engaged. The interface is currently available in English, Dutch, Chinese, French and Japanese*. Users can easily change the language with simple clicks so that they can charge in the most comfortable language.
*More languages will be released by time!
Optional Parts (not included):
- Charging cables
- BD350 Discharger - SK600147-01
- PCH-150 Power & Charging Hub - SK600148-01
- Parallel Charging Cable - SK600023-19
- Pro Parallel Charging Cable - SK600023-20
Specs:
- Case Material: Plastic
- Case Size: 116x110x79mm
- Weight: 602g
- Display Type: Color X
- DC Input Voltage: 10-30V
- AC Input Voltage : 100-240V
- Charger power: AC: 200W MAX / DC: 800W MAX
- Discharge power:
- Main port: 10W
- Balance port: 37W MAX
- External discharge: 350W MAX
20W USB-C Power Delivery:
- QC3.0: 5V⎓3A, 9V⎓2A, 12V⎓1.5A 18W
- PD: 5V⎓3A, 9V⎓2.2A, 12V⎓1.67A 20W
Battery Types/Cells:
- LiPo/LiHV/LiFe/LiIon: 1-6cells
- NiMH/NiCd: 4-15cells
- Pb: 3S/6S/12S
Charge current:
- LiPo/LiFe/LiIon/LiHV/NiMH/NiCd/Pb：0.1-20.0A
- Parallel：20.0-35.0A
Discharge current:
- LiPo/LiFe/LiIon/LiHV/NiMH/NiCd/Pb：0.1-2.0A
- External discharge：0.1-40.0A (through BD350 - sold separately)
Balance current:
- LiPo/LiFe/LiIon/LiHV：1.5A MAX
Operation:
- LiPo/LiFe/LiIon/LiHV: Balance, Charge, Discharge, Storage, Parallel
- NiMH/NiCd: Charge, Cycle, Re-peak, Discharge
- Pb: Normal, AGM Charge, Cold Charge, Discharge
