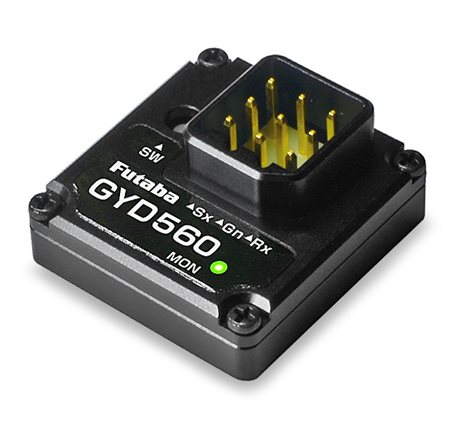

Futaba GYD560 - High-End Driftcar Gyro UR/SR mode
UR mode compatible for smoother operation The GYD550, the No. 1 drift car, has been redesigned with UR mode!
Features:
- Compatible with the UR mode servos of the high-speed response system F-4G.
- Remote gain function: Set the gyro sensitivity from the transmitter. (A transmitter/receiver with 3 or more channels and capable of adjusting the steering angle of 3 channels is required.)
- Settings specifically for RC drift cars: Reduces the effects of road surfaces and other factors, and combined with the response of UR mode, supports impressive drifting.
- Ultra-compact and lightweight: Ultra-compact and lightweight design achieved through full use of high-density mounting technology.
- Aluminum case: The use of a robust, highly rigid, and lightweight aluminum case transmits chassis movement to the internal sensors more accurately.
- Compatible with S.BUS systems (can also be used with non-S.BUS systems): Can be connected via S.BUS in combination with an S.BUS receiver.
- Digital servo only: For Futaba HPS/BLS servos and digital servos only. Analog servos cannot be used.
- Normal/AVCS mode
- Fast response mode
- High gain mode
- Tail slide speed adjustment
- Gyro curve adjustment
- Left and right end point adjustment
- damper adjustment
- Stick Priority Mode Adjustment
- Wireless adjustment function supported
* Wireless settings are only available on the F-4G systems of the T10PX, T6PV, R404SBS, and R404SBS-E. A software update is required for the T10PX, T6PV, R404SBS, and R404SBS-E to a version that supports the wireless settings of the GYC480 and GYD560.
Specs:
- Sensor integrated gyro
- Angular velocity detection method: Vibration gyro sensor
- Operating voltage: DC 3.5V to 8.4V
- Current consumption: 30mA (when servo is not connected)
- Operating temperature: -10°C to +45°C
- External dimensions: 20.7x21.7x10.6mm (excluding protrusions)
- Weight: 5.4g
- Functions: Monitor LED, S.BUS/S.BUS2 compatible
