NEW V3.1 Version
Motor Can
- the all new motor can has bigger and more ventilation holes allowing better heat dispersion thus providing better run time
- front section has evenly spaced mounting screws holes that is compatible and fits for all after market motor holder and chassis
End Cap
- newly designed end cap now comes with side locking screws that firmly secures the end cap and PCB.
Stator
- high temp wires used for longevity
- proprietary wiring producing better speed, torque and smoothness
Upgradeability
- all our V3.1 sensorless motor can be easily upgraded to sensored motor with optional parts - *COMING SOON*
You no longer need to change the entire motor
Changeable armature
New design air vent get more cooling
High Temperature wire

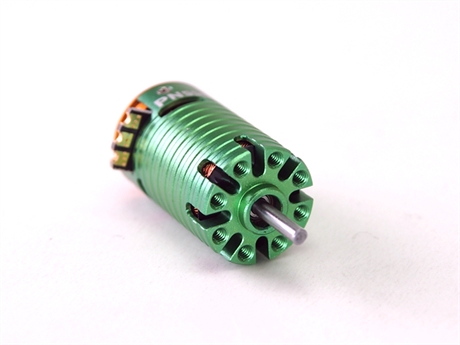

15mm diameter motor can, same as normal brushed 130 motor. Fits in all Kyosho, PN, and aftermarket motor mounts.
Fits in all Mini-Z chassis AWD, F1, MR02 and MR03.
Much more torque and acceleration than others VE motor.
No loading RPM 33000 on 4.8V, amp draw only 0.4A
Four mounting holes to allow different angle of motor terminals.
Eight venting holes prevent heat buildup.
Can and endbell ball bearing from Japan.
Recommend gear ratio 4.00 to 4.80 (64P 11T or 12T Pinion, 52T or 53T Spur Gear)See More
Connection M1 to Orange Wire, M2 to Yellow Wire, M3 to Blue Wire
Recommend wire #
700122
