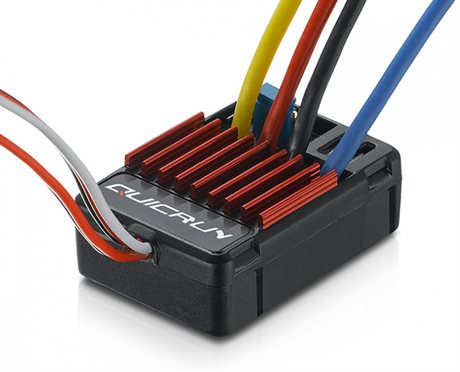

QuicRun WP 1625 Brushed ESC
This ESC is specially designed for new beginners and intermediate modelers; it not only carries forward the outstanding quality of HOBBYWING products but simplifies the operation.
Applicable to All Weather Conditions
The waterproof and dust-proof design allows the QUICRUN WP-1625 Brushed to be used in all weather conditions without any issue of damage caused to the ESC from water or dust.
High Reliability & Durability
Reliable hardware combined with advanced software technology allows the QUICRUN WP-1625 Brushed to not only provide high power output but also overload protection of the ESC circuit.
Easy to Use
This ESC features auto throttle calibration and parameter setting via jump caps is easy-to-use, especially applicable to new beginners.
QuicRun 1625 Brushed 25A 2-3S ESC:
- Scale: 1/16 & 1/18
- Type: Brushed
- Waterproof: Yes
Specifications:
- Cont./Peak Current: 25A/100A
- Input: 2-3S LiPo/6-9 Cells NiMH
- BEC Output: Linear Mode 6V/1A
Wires & Connectors:
- Input Wires: 18AWG/75mm
- Output Wires: 18AWG/75mm
- Input Connector: Mini-TAMIYA
- Output Connectors: 4mm Bullet Connectors (Female)
- Fan: No
ESC Programing via:
- SET Button on ESC: Not Supported
- LED Program Box: Not Supported
- LCD Program Box: Not Supported
- WiFi Module: Not Supported
- Program Port: Jumper Cap
- Firmware Upgrade: Not Supported
Size & Weight:
- Size: 34 x 24 x 14 mm
- Weight: 24g
Applications:
- Motors: Brushed
- Vehicles: 1/16 & 1/18 Touring Cars/Buggies/Monster Trucks
KV Rating/T Count:
- 2S LiPo: RPM≤30000
- 3S LiPo: RPM≤20000
(280/370/380 Size Motors)
Programmable Items:
Installation & Connection:
