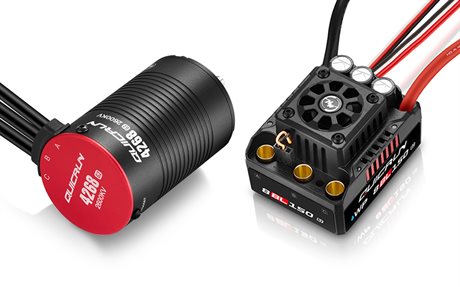

HW38030400 - QUICRUN WP 8BL150 G2 Combo
Included in the combo:
1pcs QuicRun WP 8BL150 G2 3-6S ESC
1pcs QuicRun 4268SL 2600KV G2 Brushless Sensorless Motor
QuicRun WP 8BL150 G2 3-6S ESC
Specs:
- Type: Brushless, sensorless, IP67 ESC
- Cont./Peak Current: 150A/950A
- Input Voltage: 3-6S LiPo
- BEC Output: Switch Mode 6V/7.4V @ 6A
- Input Wires: 10AWG-150MM
- Output Connectors: 6.5mm Gold (female)
- Input Connector: No
- Size: 60x48x40.4mm
- Weight: 169.5g
- Firmware Upgrade: Not Supported
- Motors: Sensorless / Sensored Brushless Motor (only in sensorless mode)
- Vehicles: 1/8 Trucks & Monster Trucks
- KV Rating/T Count: With 4S Lipo: KV ≤ 3000 - With 6S Lipo: KV ≤ 2400 4274 size motor
- SET Button on ESC: Not Supported
- LED Program Box: Supported
- LCD G2 Program Box: Supported
- OTA Programmer: Not Supported
- Program Port: Separate Programing Port
QuicRun 4268SL 2600KV G2 Brushless Sensorless Motor
Specs:
- Type: 1/8, brushless, sensorless ESC
- Pole Count: 4
- KV Rating: 2600
- LiPo Cells: 3-4S
- No-load Current(A): 6.1A
- O.D.: 42mm
- Length: 68.4mm
- Shaft Diameter: 5mm
- Connectors: 6.5mm Male
- Wire: 10AWG-200MM
- Weight: 417g
- Front Bearing: D16xD5xT5
- Rear Bearing: D13xD5xT4
- ESC: QUICRUN WP 8BL150 G2 or QUICRUN WP 10BL120 G2 (4mm motor connectors is required)
- Vehicles: 1/8 Buggy & 1/10 Monster truck
