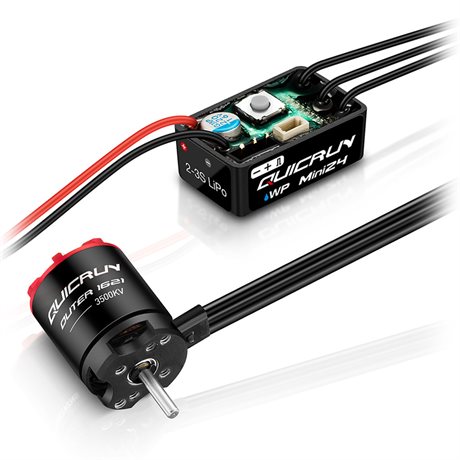

HW38020436 - Quickrun Brushless WP Mini24 Combo Crawler 2-3S 1/24-1/16
ESC
The QuicRun WP mini24 ESC supports sensorless brushless motors and brushed motors, making it compatible with most motors on the market. Its fully waterproof design ensures reliable performance in all conditions.
- Super internal switch-mode BEC with a switchable voltage of 6V/7.4V for use with high torque and high voltage servos.
- Separate programming port for easy connection of the LED program card or the LCD Pro program box to the ESC.
- Multiple protections, including motor lock-up protection, low-voltage cutoff protection, thermal protection, overload protection, and fail-safe (throttle signal loss protection).
- Allows real-time adjustment of drag brake force using the transmitter's AUX channel.
- Pair the QuicRun WP mini24 ESC with the QuicRun 1621SL Outer Motor to maximize performance and achieve optimal results.
Motor
- The QuicRun 1621 Outer Motor pairs perfectly with the QuicRun WP Mini24 ESC, providing optimal performance.
- Good Linearity at Low Speeds: The motor offers excellent low-speed linearity with minimal vibration amplitude. Precision dynamic balancing of the rotor significantly
- reduces vibration and performance loss, ensuring a smooth control experience.
- Silicone Wire Outlet: Features a silicone wire outlet for easier and more aesthetically pleasing wiring compared to traditional high-hardness enameled wire outlets.
- High Installation Compatibility: Includes three sets of M2 screw holes with 9, 10 and 12.5mm hole pitches, making it compatible with various motor base mounting hole diameters and offering excellent adaptability.
- Low Cogging Torque: The motor’s low cogging effect and minimal torque pulsation ensure exceptionally smooth operation at low speeds, meeting the rider’s need for precise control.
- Modular Design: Allows for easier disassembly and maintenance, making daily cleaning straightforward. This design not only extends the motor’s service life but also helps maintain optimal working efficiency.
- Durable Construction: Utilizes high-performance iron core, 220°C high-temperature resistant enameled wire, and high-precision bearings to ensure consistently outstanding performance.
Motor specs:
- KV: 3500KV
- Lipo cells: 2-3S
- No-load Current: 0.6
- Max. Output (W): 39.1
- CUrrent @Max. Output Power (A): 9.52
- Diamter: 15.8mm
- Length: 21mm
- Shaft diameter: 2.0 mm
- Shaft length: 9mm
- Poles: 12
- Weight: 16.7g
- Applications: 1/24-1/16 Crawlers
