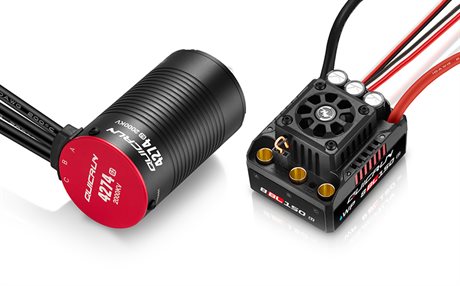

Hobbywing 38030401 - QuicRun Combo WP 8BL150 G2 - 4274SL 2000kV G2 Sensorless
QuicRun WP 8BL150 G2 3-6S ESC - HW30109003
Features
- Waterproof/dustproof design for all-weather running
- 3–6S LiPo support for 1/8 buggies, truggies and MTs
- 150 A continuous output for strong acceleration and stable braking
- High-current switch-mode BEC with HV-servo support (6.0/7.4 V selectable)
- Adjustable punch, brake strength, drag brake, timing, and PWM/brake frequency
- Protection suite: low-voltage cutoff, over-temperature, overload and signal loss
- External on/off switch with protective cap; cooling fan included
- Compatible with LED Program Card / Program Box for easy tuning
Specs:
- Type: Brushless, sensorless, IP67 ESC
- Cont./Peak Current: 150A/950A
- Input Voltage: 3-6S LiPo
- BEC Output: Switch Mode 6V/7.4V @ 6A
- Input Wires: 10AWG-150MM
- Output Connectors: 6.5mm Gold (female)
- Input Connector: No
- Size: 60x48x40.4mm
- Weight: 169.5g
- Firmware Upgrade: Not Supported
- Motors: Sensorless / Sensored Brushless Motor (only in sensorless mode)
- Vehicles: 1/8 Trucks & Monster Trucks
- KV Rating/T Count: With 4S Lipo: KV ≤ 3000 - With 6S Lipo: KV ≤ 2400 4274 size motor
QuicRun 4274SL 2000kV G2 Brushless Sensorless Motor - HW30404700
Specs:
- Type: 1/8, brushless, sensorless ESC
- Pole Count: 4
- KV Rating: 2000
- LiPo Cells: 3-6S
- No-load Current(A): 5.9A
- O.D.: 42mm
- Length: 74.9mm
- Shaft Diameter: 5mm
- Connectors: 6.5mm Male
- Wire: 10AWG-200MM
- Weight: 477g
- Front Bearing: D16xD5xT5mm
- Rear Bearing: D13xD5xT4mm
