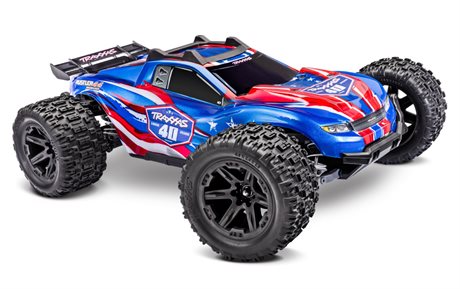

Traxxas Rustler 4x4 VX5 Stadium Truck
A New Generation of Stadium Truck
Rustler® 4X4 Brushless captures the performance of a stadium truck and injects it with a massive dose of strength and power. Rustler’s new Velineon® 3s brushless power system delivers 4-wheel burnouts and 80+ kph speed right out of the box with no gearing changes required. New GTR shocks deliver an ultra-plush ride to power over rough terrain without breaking a sweat. With more power and performance than ever before, Rustler 4X4 remains the ultimate stadium truck.
New 3s Brushless Horsepower
Rustler 4X4’s new Velineon 3s power system is a brushless powerhouse that transforms 3s LiPo power into brutal acceleration and 80+ kph speed, out of the box with no gearing changes required. The fan-cooled VX3 speed control is feature-packed and simple to use with Traxxas EZ-Set® one-button programming. The powerful V3200 motor is a model speed, power, and efficiency.
New GTR Shocks
New composite GTR shocks complement Rustler’s 4X4’s long-travel suspension to create a supremely plush ride. GTR shocks hold over 70% more oil than standard Ultra Shocks for consistent damping performance. X-ring seals keep oil in and dirt out for smooth suspension compression and rebound. Spring preload and ride height changes are as simple as turning the threaded collar and the spring retainers are captured with a screw so they can't pop off.
New Clipless Body
Rustler 4X4 receives an updated clipless body mounting system with four latches, one above each wheel, for quick and easy removal. Just press down on the body and the latches lock tight with a reassuring snap. The sleek, aerodynamic body features a rugged internal structure with body reinforcements to reduce the likelihood of pull-through damage.
New Sledgehammer ST Tires
Rustler puts its brushless 3s power to the ground thanks to the outstanding grip of its new high-performance Sledgehammer® ST tires. The Sledgehammer’s open-block tread design clears away mud and debris for unrivaled traction on loose surfaces. Large 2.8” RXT 6-spoke black wheels give Rustler 4X4 a powerful stance.
What’s In The Box:
- Rustler 4X4 VXL with VX3 ESC and V3200 motor
- TQi Sport 2.4 GHz radio system
- High quality maintenance tools
What You’ll Need:
- Batteries: Rustler 4X4 Brushless requires a single 2-cell or 3-cell LiPo battery.
- Charger: The Traxxas EZ-Peak® charger 2970 is recommended for easy and fast charging performance.
- AA Alkaline Batteries: Four AA alkaline batteries for the transmitter
Model Specs:
- Name: Rustler 4X4 Brushless
- Type: Stadium Truck
- Speed: 56+ kph with 2s LiPo battery, 80+ kph with 3s
- Skill Level: 1
- Scale: 1/10
- Weight: 2.32 kg
- Length: 477 mm
- Width: 329 mm
- Height: 161 mm
- Wheelbase: 295 mm
- Center Ground Clearance: 27 mm
- Driveline: Shaft driven 4WD
- Transmission: Single speed
- Differential Type: Hardened steel bevel, sealed, limited slip
- Gear Ratio (Internal): 13.97:1
- Gear Pitch: M0.8 (compatible with 32 pitch)
- Steering Servo: 2057 metal gear waterproof
- Radio System: TQi™ Sport 2.4 GHz 2-channel radio with TSM®
- Battery Compartment Size: 162 x 50 x 23/25 mm
Motor Specs:
- Name: Velineon V3200 (patent pending)
- Motor Type: Sensorless brushless
- Length: 85 mm
- Diameter: 36 mm
- Shaft Size: 5 mm
- Connector Type: Bullet
ESC Specs:
- Name: VX3 Electronic Speed Control
- ESC Type: Brushless
- Voltage Range: 2-cell or 3-cell LiPo (NiMH not supported)
- Motor Connectors: Bullet
- Battery Connectors: Traxxas High-Current Connector
