Traxxas TRX88296-4-BLK - TRX-6 Mercedes-Benz G 63 AMG 6x6 Clipless - BLACK

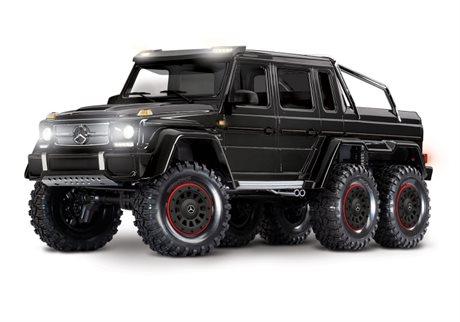

The Mercedes-Benz G 63 AMG 6x6 represents a singular vision to create the boldest and toughest all-terrain vehicle ever. Traxxas captures the spirit and no-compromise approach of the Mercedes-Benz® G 63 AMG 6x6 with an officially licensed detailed scale replica built on the new TRX-6® platform. Six drive wheels, three T-Lock™ remote-locking differentials, portal axles, high/low transmission, 6 aluminum long-travel shocks, and a stunningly accurate body with brilliant LED lighting make this the most advanced and capable RC crawler ever to hit the trail.
Superior 6x6 Design
A fully independent intermediate axle puts an extra set of driving wheels where you need them most to power over obstacles that would otherwise be impossible. 6-wheel drive also allows greater traction to attack steeper inclines and more grip over loose and rocky surfaces.
Exceptional Body Detail
The TRX-6 Mercedes-Benz G 63 AMG 6x6 faithfully reproduces one of the most exclusive and recognizable all-terrain vehicles ever created. Chrome accents, molded trim, and finely detailed lighting elements highlight the rich metallic paint. Traxxas’ uncompromising attention to detail elevates the TRX-6 to the ultimate expression of beauty and brawn.
Factory-Equipped LED Lighting
Rugged and fully-waterproof, the preinstalled LED lighting blazes a path through the darkest night. Accurate scale details abound in the finely crafted headlights, taillights, and side marker lights. Even the roof visor is fitted with brilliant LED lighting. A dedicated power supply regulates the voltage for bright, consistent, and efficient lighting.
New Clipless Body Mounting
New to Mercedes-Benz G 63 AMG 6x6, clipless body mounting combines clean flowing lines with secure latching convenience. TRX-6 Mercedes-Benz G 63 AMG’s hidden latches hold tight on the trail no matter how intense the action gets, but release in just seconds to access the chassis.
Vehicle Specs:
- Length: 651 mm
- Front Track: 249 mm
- Rear Track: 249 mm
- Ground Clearance: 80 mm
- Weight: 3.99 kg
- Height: 274 mm
- Wheelbase (to intermediate axle): 324 mm
- Wheelbase (to rear axle): 454 mm
- Approach Angle: 60°
- Departure Angle: 55°
- Breakover Angle: 57°
- Front Shock Length: 90 mm
- Rear Shock Length: 90 mm
- Battery Tray: 158.75 L x 47 W x 23/26 mm H
- Front Wheels: 2.2 x 1.02 inches (56 x 26 mm)
- Rear Wheels: 2.2 x 1.02 inches (56 x 26 mm)
- Front Tires: 4.64 x 1.89 inches (118 x 48 mm)
- Rear Tires: 4.64 x 1.89 inches (118 x 48 mm)
- Hex Size: 12 mm
- Speed Control: XL-5™ HV
- Motor (electric): Titan® 21T reverse rotation
- Transmission: 2-speed high/low, remote shifting
- Gear Pitch: 32 pitch
- Differential Type: 4 gear, remote locking
- Chassis Structure / Material: Steel ladder frame with Nylon composite crossmembers
- Brake Type: Electronic “Hill Hold”
- Drive System: Shaft-driven 6WD
- Steering: Chassis mounted servo
- Servo: 2075X metal gear
- Transmitter: TQi™ 2.4 GHz 4-channel transmitter
- Receiver: 6533
- Skill Level: 1
Motor Specs:
- Type: High-torque brushed motor
- Size: 550
- Weight: 390 g
- Size: 78 mm overall length, 57 mm can length, 38.9 mm diameter
- Turns: 21T reverse rotation
- Voltage: 16.8 volts
ESC Specs:
- Input Voltage: 6–7 cells NiMH, 2–3s LiPo
- Motor Limit: 21-turns (550 size)
- Peak Current - Forward: 100 amps
- Peak Current - Reverse: 100 amps
- Braking Current: 60 amps
- Continuous Current: 18 amps
- BEC Voltage: 6.0 volts
- BEC Current: 1 amp
- Low Voltage Detection (LVD): 2-stage indicators, switchable (on or off)
- Thermal Protection: Thermal shutdown
- Single-button setup: Traxxas EZ-Set®
Profile selection:
- Sport Mode: 100% FWD, 100% brakes, 100% REV
- Race Mode: 100% FWD, 100% brakes, no REV
- Training Mode:* 50% FWD, 100% brakes, 50% REV
- Trail Mode: 100% FWD, 100% Brake, 100% REV, Trail-Tuned Brake on Neutral
- Crawl Mode: 100% FWD, 100% Instant REV, 100% Brake on Neutral
* Patented
What’s In The Box:
- TRX-6, Ready-To-Drive® model
- XL-5™ HV waterproof electronic speed control
- Titan® 21T reverse rotation motor
- TQi™ 2.4 GHz radio system with cruise control
- High quality maintenance tools
What You’ll Need:
- Batteries: TRX-6 accepts a wide variety of NiMH (4–7 cell) and LiPo (2s–3s) batteries.
- Charger: Traxxas EZ-Peak® Live charger is recommended for easy and fast charging performance (model 2971).
- AA Alkaline Batteries: Four AA alkaline batteries for the transmitter.
