Orange TRX-4 with TRAXX™ - RC Rock Crawler with Maximum Traction!

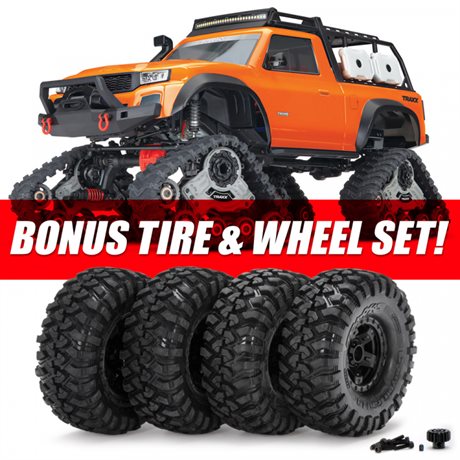

BONUS TIRE & WHEEL SET!
Now including an extra-value 1.9" tire and wheel set to tackle any terrain!
- Four tires and wheels
- 16T Pinion Gear
- Installation Hardware
TRX-4 EQUIPPED WITH TRAXX
Hit the trail fully outfitted for fun and adventure with the TRX-4® equipped with Traxx™. Engineered for grip everywhere and ultimate off-road capability, Traxxas elevates this truck higher and wider than any other TRX-4 model. Plus it’s factory-equipped with powerful lighting and a full array of performance parts and scale detail accessories. The fully-painted body with clear windows further enhances the realism.
MAXIMUM TRACTION
Outfitted with Traxx, the TRX-4 transforms into an all-terrain monster. The enormous contact patch and grippy treads shrug off the deepest mud and float across sand. Traxx’ increases ground clearance and approach angles to let you straddle even larger obstacles and climb steeper grades without breaking a sweat.
LED LIGHT KIT
The pre-installed LED light kit features headlights, taillights, and a wide 28-LED rack-mounted light bar. Fully waterproof for all-weather adventure, the LED light kit keeps the fun going long after the sun sets. The injection molded grill and tailgate feature integrated lenses for additional scale detail and rugged functionality.
SCALE ACCESSORIES
The TRX-4 Traxx Edition includes an entire complement of scale accessories. The tough and functional Expedition Rack comes outfitted with a replica snorkel, side mirrors, traction boards, fire extinguisher, jack, and canisters for extreme scale detail. Inner fenders and clear windows give the TRX-4 a realistic appearance for maximum impact.
Vehicle Specs:
- Length: 557mm
- Front & Rear Track Width: 266 mm
- Ground Clearance: 90 mm
- Weight: 3.95 kg
- Height: 261 mm
- Wheelbase: 312mm
- Approach Angle: 76°
- Departure Angle: 76°
- Breakover Angle: 81°
- Front Shock Length: 90mm
- Rear Shock Length: 90mm
- Battery Tray: L158.75 x W47 x H23/26mm
- Speed Control: XL-5 HV
- Motor (electric): 21T Reverse Rotation
- Transmission: Single Speed
- Gear Pitch: 32P
- Differential Type: Spool (no differential)
- Chassis Structure / Material: Steel Ladder Frame with Nylon Composite Crossmembers
- Brake Type: Electronic “Hill Hold”
- Drive System: Shaft Driven 4WD
- Steering: Chassis Mounted Servo
- Servo: 2075X Metal Gear
- Transmitter: TQ™ 2.4GHz 2-Channel Transmitter
- Receiver: 6519
- Skill Level: 1
Motor Specs:
- Type: High-torque brushed motor
- Size: 550
- Weight: 390g
- Length: 78mm overall length, 57mm can length, 38.9mm diameter
- Turns: 21T reverse rotation
- Voltage: 16.8V
ESC Specs:
- Input Voltage: 6–7 Cells NiMH, 2–3s LiPo
- Case Size: 1.23” W x 2.18” D x 1.04” H
- Weight: 2.6oz (74g)
- Motor Limit: 21-turns (550 size)
- On Resistance Forward: 0.004 Ohms
- On Resistance Reverse: 0.004 Ohms
- Peak Current - Forward: 100A
- Peak Current - Reverse: 100A
- Braking Current: 60A
- Continuous Current: 18A
- BEC Voltage: 6.0 VDC
- BEC Current: 1A
- Power Wire: 14 Gauge / 5”
- Input Harness Wire: 26 Gauge / 14.5”
- Transistor Type: MOSFET
- PWM Frequency: 1700Hz
- Low Voltage Detection (LVD): 2-Stage indicators, switchable (on or off)
- Thermal Protection: Thermal Shutdown
- Single-button setup: Yes, Traxxas EZ-Set®
ESC Profile Selection:
- Sport Mode: 100% FWD, 100% brakes, 100% REV
- Race Mode: 100% FWD, 100% brakes, no REV
- Training Mode:* 50% FWD, 100% brakes, 50% REV
- Trail Mode: 100% FWD, 100% Brake, 100% REV, Trail-Tuned Brake on Neutral
- Crawl Mode: 100% FWD, 100% Instant REV, 100% Brake on Neutral
* Patented
What’s In The Box:
- TRX-4, Ready-To-Drive® model equipped with TRAXX®
- XL-5 HV waterproof electronic speed control
- Titan™ 21T reverse rotation motor
- TQ™ 2.4GHz radio system
- High quality maintenance tools
What You’ll Need:
- Batteries: TRX-4 accepts a wide variety of NiMH (4–7 cell) and LiPo (2s–3s) batteries
- Charger: Traxxas EZ-Peak Live charger is recommended for easy and fast charging performance (model #2971)
- AA Alkaline Batteries: Four AA alkaline batteries for the transmitter
