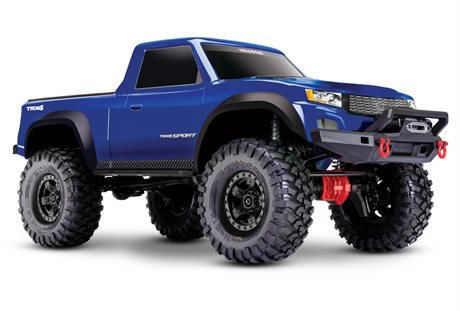

Traxxas TRX82224-4-BLUE - TRX-4 Sport Clipless - BLUE
Purpose Built
TRX-4® Sport combines the unbeatable ground clearance and driving dynamics of Traxxas portal axles, sticky Canyon Trail™ tires, and a clipless lightweight pickup truck body for a leaner, performance-focused truck. The Sport’s unique bumpers, wheels, and body were designed for increased climbing versatility. Whether it’s a fun trail run or a hardcore technical crawl, the TRX-4 Sport’s capability and performance-built approach takes your outdoor adventure to a new level.
New Clipless Body Mounting
New to TRX-4 Sport, clipless body mounting combines clean flowing lines with secure latching convenience. TRX-4 Sport’s hidden latches hold tight on the trail no matter how intense the action gets, but release in just seconds to access the chassis.
Accessories
A wide range of performance and adventure accessories are available to transform your TRX-4 Sport into a highly detailed Scale and Trail® crawler. Accessories are sold separately.
- Clear and Painted Bodies
- Expedition Rack
- Auxiliary Exterior LED Lighting for the Roof, Bumper, and Expedition Rack
- Traction Boards
- Side View Mirrors
- Molded Inner Fenders
- Snorkel
- Spare Tire Mount
- Bolt-on Headlights and Tail Lights
- Shovel, Axe, Jack & More!
Vehicle Specs:
- Length: 557 mm
- Width: 249 mm
- Ground Clearance: 80 mm
- Weight: 2.63 kg
- Height: 241 mm
- Wheelbase: 312 mm
- Approach Angle: 58.82°
- Departure Angle: 45.83°
- Breakover Angle: 59°
- Front Shock Length: 90 mm
- Rear Shock Length: 90 mm
- Front Wheels: 49 x 26 mm
- Rear Wheels: 49 x 26 mm
- Front Tires: 118 x 48 mm
- Rear Tires: 118 x 48 mm
- Hex Size: 12 mm
- Speed Control: XL-5™ HV
- Motor (electric): 21T reverse rotation
- Transmission: Single speed
- Gear Pitch: 32 pitch
- Differential Type: Spool (no differential)
- Chassis Structure / Material: Steel ladder frame with Nylon composite crossmembers
- Brake Type: Electronic “Hill Hold”
- Drive System: Shaft driven 4WD
- Steering: Chassis mounted servo
- Servo: 2075X metal gear
- Transmitter: TQ™ 2.4 GHz 2-channel transmitter
- Receiver: 6519
- Skill Level: 1
- Battery Tray: 158.75 L x 47 W x 23/26 mm H
Motor Specs:
- Type: High-torque brushed motor
- Size: 550
- Weight: 390 g
- Length: 78 mm overall length, 57 mm can length, 39 mm diameter
- Turns: 21T reverse rotation
- Voltage: 16.8 volts
ESC Specs:
- Input Voltage: 6–7 cells NiMH, 2–3s LiPo
- Motor Limit: 21-turns (550 size)
- Peak Current - Forward: 100 amps
- Peak Current - Reverse: 100 amps
- Braking Current: 60 amps
- Continuous Current: 18 amps
- BEC Voltage: 6.0 volts
- BEC Current: 1 amp
- Low Voltage Detection (LVD): 2-stage indicators, switchable (on or off)
- Thermal Protection: Thermal shutdown
- Single-button setup: Traxxas EZ-Set®
Profile selection:
- Sport Mode: 100% FWD, 100% brakes, 100% REV
- Race Mode: 100% FWD, 100% brakes, no REV
- Training Mode:* 50% FWD, 100% brakes, 50% REV
- Trail Mode: 100% FWD, 100% Brake, 100% REV, Trail-Tuned Brake on Neutral
- Crawl Mode: 100% FWD, 100% Instant REV, 100% Brake on Neutral
* Patented
What’s In The Box:
- TRX-4, Ready-To-Drive model
- XL-5 HV waterproof electronic speed control
- Titan™ 21T reverse rotation motor
- TQ 2.4 GHz radio system
- High quality maintenance tools
What You’ll Need:
- Batteries: TRX-4 accepts a wide variety of NiMH (6–7 cell) and LiPo (2s–3s) batteries.
- Charger: Traxxas EZ-Peak® Live charger is recommended for easy and fast charging performance (model 2971).
- AA Alkaline Batteries: Four AA alkaline batteries for the transmitter.
