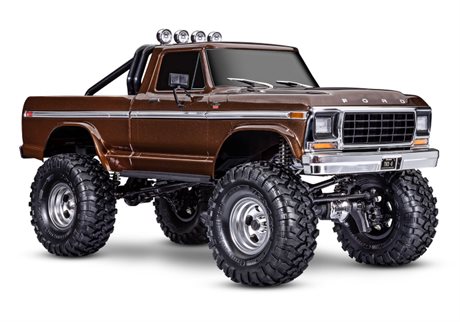

Traxxas TRX-4 Ford F-150 Ranger XLT Scale & Trail Crawler Hight Trail Edition - BROWN
The Traxxas lineup of exciting and capable High Trail TRX-4® models is expanding with the all-new 1979 Ford® F-150® truck. Sporting top-of-the-line Ranger XLT trim, the Ford F-150 High Trail is equipped with a factory-installed Long Arm Lift Kit and stands over an inch taller than our standard height TRX-4. The exceptional all-terrain capability, smooth running drivetrain, and Traxxas Tough® durability drivers expect from TRX-4 are all there. Black roll bar, chrome light housings, longer wheelbase, and slotted aluminum-finish mags complete the authentic, period correct look.
Traxxas TRX-4 Ford F-150 Ranger XLT Scale & Trail Crawler Hight Trail Edition - BROWN
The Traxxas lineup of exciting and capable High Trail TRX-4® models is expanding with the all-new 1979 Ford® F-150® truck. Sporting top-of-the-line Ranger XLT trim, the Ford F-150 High Trail is equipped with a factory-installed Long Arm Lift Kit and stands over an inch taller than our standard height TRX-4. The exceptional all-terrain capability, smooth running drivetrain, and Traxxas Tough® durability drivers expect from TRX-4 are all there. Black roll bar, chrome light housings, longer wheelbase, and slotted aluminum-finish mags complete the authentic, period correct look.
High Trail Edition
Large 2.2" slotted mag wheels and Canyon Trail tires tame even the most technical trails to extend your scale adventures farther than ever before. The factory-installed Long Arm Lift Kit raises F-150 High Trail™ Edition over an inch taller for superior ground clearance.
Extended 336mm Wheelbase
F-150’s extended steel ladder frame lengthens the wheelbase to 336mm to capture the pickup’s real-world proportions perfectly. A longer wheelbase also translates into greater climbing stability and a smoother, more stable ride over rough terrain.
Clipless Body Mounting
The clipless body’s hidden latching system gives F-150 High Trail Edition clean, flowing lines for new level of scale realism and convenience. On the trail, F-150’s clipless body holds tight when you need it, but releases in just seconds to access the chassis.
Specs:
- Length: 566mm
- Front Track: 270mm
- Rear Track: 270mm
- Center Ground Clearance: 99mm
- Weight (w/o battery): 3.33kg
- Height (overall): 275mm
- Wheelbase: 13.23 inches (336mm)
- Approach Angle: 73.5°
- Departure Angle: 49.67°
- Breakover Angle: 67°
- Front Shock Length: 110mm
- Rear Shock Length: 110mm
- Front Wheels: 2.2 x 1.34 inches (56 x 34mm)
- Rear Wheels: 2.2 x 1.34 inches (56 x 34mm)
- Front Tires: 5.3 x 2.14 inches (135 x 54mm)
- Rear Tires: 5.3 x 2.14 inches (135 x 54mm)
- Hex Size: 12mm
- Speed Control: XL-5 HV
- Motor (electric): 21T Reverse Rotation
- Transmission: 2-speed High/Low, Remote Shifting
- Gear Pitch: 32 Pitch
- Differential Type: 4 Gear, Remote Locking
- Chassis Structure / Material: Steel Ladder Frame with Nylon Composite Cross-members
- Brake Type: Electronic “Hill Hold”
- Drive System: Shaft Driven 4WD
- Steering: Chassis Mounted Servo
- Servo: 2075X Metal Gear
- Transmitter: TQi™ 2.4 GHz 4-Channel Transmitter
- Receiver: 6533
- Skill Level: 1
- Battery Tray: L158.8 x W47 x H23/26mm
Motor Specs:
- Type: High-torque brushed motor
- Size: 550
- Weight: 390g
- Length: 78mm (overall), 57mm (can)
- Diameter: 38.9mm
- Turns: 21T reverse rotation
- Voltage: 16.8V
ESC Specs:
- Motor Limit: 21-turns (550 size)
- Peak Current - Forward: 100A
- Peak Current - Reverse: 100A
- Braking Current: 60A
- Continuous Current: 18A
- BEC Voltage: 6.0 VDC
- BEC Current: 1A
- Low Voltage Detection (LVD): 2-Stage indicators, switchable (on or off)
- Thermal Protection: Thermal Shutdown
- Single-button setup: Yes, Traxxas EZ-Set®
ESC Profile selections:
- Sport Mode: 100% FWD, 100% brakes, 100% REV
- Race Mode: 100% FWD, 100% brakes, no REV
- Training Mode:* 50% FWD, 100% brakes, 50% REV
- Trail Mode: 100% FWD, 100% Brake, 100% REV, Trail-Tuned Brake on Neutral
- Crawl Mode: 100% FWD, 100% Instant REV, 100% Brake on Neutral
* Patented
What’s In The Box:
- TRX-4, Ready-To-Explore® model
- XL-5 HV waterproof electronic speed control
- Titan® 21T reverse rotation motor
- TQi™ 2.4GHz radio system with cruise control
- High quality maintenance tools
What You’ll Need:
- Battery: TRX-4 accepts a wide variety of NiMH (4–7 cell) and LiPo (2s–3s) batteries
- Charger: Traxxas EZ-Peak® Live charger is recommended for easy and fast charging performance (model #2971)
- AA Alkaline Batteries: Four AA alkaline batteries for the transmitter
Ford Motor Company Trademarks and Trade Dress used under license to Traxxas.
