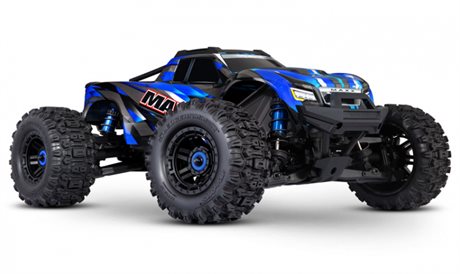

Meet the New Maxx® with WideMAXX
Meet the new, wider and updated 1/10 Traxxas Maxx - now with WideMAXX suspension kit and Sledgehammer tires. The new wider Maxx expertly packages X-Maxx’s innovative design elements into a lighter, more compact, more ferocious beast that is ready to take speed and strength to new levels of extreme intensity. Let the fun begin!
Features:
- NEW! Equipped with WideMAXX Suspension Kit
- NEW! TSM Rated All-Terrain SLEDGEHAMMER® Tires
- NEW! Now also accepts the taller 4s 6700mAh Traxxas PowerCell LiPo battery
- VXL-4s™ Waterproof Electronic Speed Control 3-4S LiPo
- Velineon® 540XL Brushless Motor 2400kV
- Traxxas Stability Management™
- TQi™ 2.4GHz High Output Radio System
- Clipless Body Mount System
- Modular Composite Chassis with easy battery access
- Heavy-Duty Steering Bellcranks and New Servo
- GT-Maxx® Shocks
- Tough 2.8" Wheels with Beefed-up 17mm hexes
The Maxx Experience
Extreme power. Extreme durability. Extreme fun! This is the foundation that the Maxx Experience is built upon. With the Maxx platform that is smaller and lighter, Traxxas engineers took the speed to 96+ kph, tuned it for even higher performance, and doubled-down on strength and durability. Maxx is once again reshaping monster truck fun and excitement.
96+ KPH Maxx Muscle
Traxxas Velineon brushless power hits hard with massive 4s punch and effortless wheelies on demand. Maxx feels like an unstoppable force of nature as top speeds reach an awe-inspiring 96+ kph.** Advanced 32-bit microprocessor-control constantly monitors the output for efficient, long-running performance. The high-output 540XL motor features a beefy, 5mm shaft, aluminum heat sink, and a powerful fan. Of course it’s all fully protected with Traxxas’ innovative waterproofing.
Traxxas Tough
Maxx is engineered to withstand extreme punishment and intense driving action. Impact absorbing suspension arms soak up the hits with ease. The heavy-duty driveline components have been proven in vehicles larger and heavier than Maxx, so there is plenty of strength to spare. The Maxx chassis absorbs and dissipates impact energy across the entire structure. Huge threaded-aluminum GT-Maxx shocks with large diameter shafts manage suspension damping. Maxx invites you to explore new ways to drive hard and have fun!
Truck Specs:
- Length: 549mm
- Front Track: 408mm
- Rear Track: 408mm
- Ground Clearance: 49mm
- Weight: 4.4kg
- Height: 232mm
- Wheelbase: 329mm
- Shock Length: 129.2mm
- Tire Diameter: 140mm
- Wheels Diameter: 2.8/3.6 inches (71/91mm)
- Speed Control: Velineon VXL-4s
- Motor (electric): 540XL (2400 kV)
- Transmission: Single-Speed
- Overall Drive Ratio: 11.86 (24 / 50)
- Differential Type: Sealed, hardened steel bevel, limited slip
- Gear Pitch: Module 1.0
- Chassis Structure/Material: Composite Modular Tub
- Brake Type: Electronic
- Drive System: Shaft-driven 4WD
- Steering: Double-shear bellcrank
- Radio System: TQi™ 2.4GHz Transmitter with TSM® receiver™
- Servo: Torque: 11.6kg/cm / Speed: 0.18s/60°
- Top Speed: 96+ KPH with 4S LiPo battery and optional gearing (sold separately)
- Skill Level: 4
- Battery Tray: L162 x W45 x H51 mm
Motor Specs (Velineon 540XL):
- Type: 2400 kv sensorless brushless
- Weight: 317g
- Length: 91mm
- Diameter: 36mm
- Connector Type: Traxxas 6.5mm bullet connectors
ESC Specs (VXL-4s):
- Input Voltage: 3S–4S LiPo (11.1V – 16.8V)
- Case Size: 72 x 59 x 49 mm
- Weight: 201g
- BEC Voltage: 6.0 V
- BEC Current Continuous: 10 A
- BEC Current Peak: 20 A
- Motor Connectors: Traxxas 6.5mm bullet connectors
- Battery Connectors: Traxxas High-Current Connectors
- Power Wire: 10-gauge Maxx Cable
- Ports: RX input, auxiliary fan, Traxxas accessory port
Profile Selection:
- Sport Mode: 100% Forward, 100% Brakes, 100% Reverse)
- Race Mode: 100% Forward, 100% Brakes, No Reverse
- Training Mode***: 50% Forward, 100% Brakes, 50% Reverse
What’s In The Box:
- Maxx with WideMAXX, Ready-To-Race® model with Traxxas 540XL brushless motor
- VXL-4s waterproof electronic speed control with integrated telemetry
- Quick Start Guide
- TQi™ 2.4GHz radio system
- High quality maintenance tools
What You’ll Need:
- LiPo Battery: Traxxas recommends a 4-cell 14.8V Power Cell LiPo battery for maximum performance. A 3-cell 11.1V LiPo battery will operate the vehicle with reduced performance. NiMH batteries are not supported
- LiPo Balance Charger with iD™: Traxxas EZ-Peak Live 4s-capable charger is recommended for easy and fast charging performance (model #2971GX)
- AA Alkaline Batteries: Four AA alkaline batteries for the transmitter
*Stock Gearing
**Optional Gearing (sold separately)
***Patented
