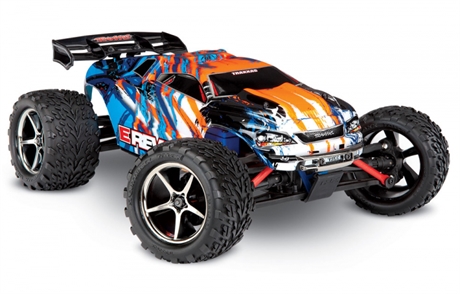

Traxxas 1/16 E-Revo - Now with ORANGE/Blue Graphics!
Traxxas sets the standard for power, performance and innovation. All the quality and waterproof capability you expect from Traxxas is available in 1/16 scale with the 1/16 E-Revo. At 14 inches long, this E-Revo is about half the size of the 1/10-scale E-Revo. But don't call it a "mini"—this is a whole new category of RC performance and fun that no mere mini-model can match. Beneath the factory-finished polycarbonate shell, you'll find the winning suspension technology of the eight-time National Champion Traxxas Revo®, high-torque Titan 550 power, and the convention-busting innovation of the E-Revo.
QUICK FEATURES ON 1/16 E-REVO (#71054-1-GRN):
- Ready-To-Race® with included 6-cell NiMH Power Cell battery with iD
- 2-amp DC peak detecting fast charger
- Revo suspension technology for superior handling and control
- Full-time 4WD
- Titan® 550 motor—largest in class
- Waterproof electronics
- Torque-Control™ slipper clutch
- Sealed differentials
- Realistic all-terrain tires with foam inserts
- Patented Traxxas High-Current Connector
- Metric hex hardware
- Rubber-sealed ball bearings
1/16 E-REVO (#71054-1-GRN) SPECS:
- Length: 320 mm
- Front Track: 239 mm
- Rear Track: 239 mm
- Weight: 1.24 kg
- Height (overall): 117 mm
- Wheelbase: 202 mm
- Wheel Diameter 2.0" (50.8 mm)
- Shock Length (front/rear): 48 mm / 48 mm
- Front/Rear Tires (glued): Talon™ 2.0"
- Front/Rear Wheels: 2.0" Gemini™ (black-chrome)
- Electronic Speed Control: Waterproof XL-2.5 ESC
- Motor (electric): Titan® 12T 550
- Transmission: Heavy-Duty Single Speed
- Gear Ratio (internal): 5.04:1, (reversed input: 9.72:1)
- Overall Drive Ratio: 15.75:1 (stock, out-of-box)
- Differential Type: Hardened Steel Bevel, Sealed
- Gear Pitch: 48-Pitch
- Chassis Structure/Material: Molded Composite Nylon Monocoque
- Brake Type: Electronic
- Drive System: Shaft-Driven 4WD
- Steering: Bellcrank
- Transmitter: TQ 2.4GHz Radio
- Receiver: #6519 3-Channel Micro
- Top Speed: 32+kph
- Skill Level: 1
- Battery Tray Dimensions: 89 mm x 35.5 mm x 20 mm
- Included Batteries: 6-cell Power Cell iD NiMH battery with 2-amp Peak Detecting DC Charger
- Required Batteries: 4 "AA" (transmitter)
XL-2.5 WATERPROOF ESC SPECIFICATIONS:
- Input Voltage: 4-7 Cells NiMH, 2 Cells (2S) LiPo
- Case Size: 26.5 mm W x 46.5 mm D x 22 mm H
- Weight: 33 grams
- Motor Limit: 10-turns*
- On Resistance (@Trans): 0.008 Ohms
- Reverse Delay: None
- BEC Voltage: 6.0V DC
- Power Wire: 16 Gauge / 40 mm
- Input Harness Wire: 26 Gauge / 130 mm
- Motor Wires: 26 Gauge / 130 mm
- Transistor Type: MOSFET
- Low Voltage Detection: 2-Stage indicators, switchable (on and off)
- PWM Frequency: 2300 Hz
- Thermal Protection: Thermal shutdown
- Single-button setup: Yes, Traxxas EZ-Set®
Profile selection:
- Sport Mode: 100% FWD, 100% brakes, 100% REV
- Race Mode: 100% FWD, 100% brakes, no REV
- Training Mode:** 50% FWD, 100% brakes, 50% REV
*Properly geared **Patented
