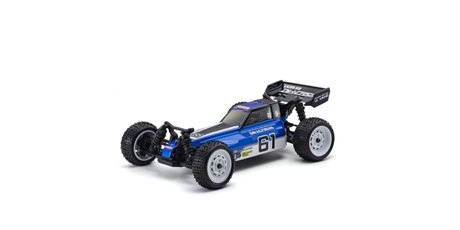

In the long and distinguished history of 1/10 EP (electric) R/C racing buggies, there are two types based on different drive systems. Rear 2WD models are typically easier to assemble and maintain and exhibit nimble driving characteristics; and then there are the equally popular 4WD models, which use drive force to all four wheels for superior traction on low-grip roads compared to 2WD. For drivers considering a step up from entry-level models, we are proud to introduce the Lazer SB Dirt Cross 4WD, which is a cost-optimized version of the competition-level ZX-5 that has continued to evolve performance and control as the cutting-edge of Kyosho’s worldwide 4WD EP buggy racing campaigns. While the suspension and driven system are retained from the proven Lazer ZX-5, the Dirt Cross does much more than reduce costs; it is designed to appeal to a new generation of R/C racers. While retaining its basic shape, the main chassis has been updated and optimized for the latest battery and motor systems. However, the body has been completely redesigned with a rear positioned cabin (instead of the usual forward-cabin of racing models), driver figure, and newly developed spoke wheels for a classic retro buggy style. As the Dirt Cross is based on a purebred race model, performance is guaranteed. Combining the most comprehensive fit out at a great value price, all the fun and performance off-road R/C has to deliver is perfectly optimized into this mid-range 4WD buggy.
●Optimal price : performance ratio is realized in this standard EP 4WD buggy based on a high performance racing buggy.
●Equipped with proven and reliable shaft-driven 4WD system.
●New body is designed with a classic rear cabin style. Also includes rear wing and driver figure.
●Front and rear gearboxes are equipped with gear differential, ensuring reliable operational stability over long periods. Can also be replaced with an optional ball differential.
●Features high rigidity and lightweight resin main chassis. In addition to various shaped standard batteries, short-type LiPo batteries can also be installed.
●Race-proven double wishbone front and rear suspension provides exceptional running stability. Oil shocks are height adjustable.
●H-pin tires provide stable grip on a wide range of road surfaces.
●Spoke wheels recreate that real racing buggy style with a retro look to match the body.
●Full bearing specifications are standard and greatly increase drive system efficiency.
●Compatible with various optional parts and shock springs from the Lazer series.
![technical-image-01](https://www.kyoshoeurope.com/pub/media/wysiwyg/product_images/34/34321B/1.jpg)
The simple chassis of the Dirt Cross delivers its high performance on all fields of action, from flat dirt to off-road racing circuits. The shaft drive 4WD at its core is based on the Lazer ZX-5, which competes at the highest levels around the world including the world championships.
![technical-image-02](https://www.kyoshoeurope.com/pub/media/wysiwyg/product_images/34/34321B/2.jpg)
The newly designed body positions the cabin near the rear in traditional racing buggy style to create fresh impressions with new drivers and a sense of nostalgia for those with more years behind the controls.
![technical-image-03](https://www.kyoshoeurope.com/pub/media/wysiwyg/product_images/34/34321B/3.jpg)
The driver figure used to be standard in Kyosho R/C buggies in earlier times and has been revived in this model to increase the sense of realism. The driver figure can also be attached to the 2WD Dirt Master.
![technical-image-04](https://www.kyoshoeurope.com/pub/media/wysiwyg/product_images/34/34321B/4.jpg)
Polycarbonate gear cover protects the spur and pinion gear when driving on surfaces with gravel and stones. The gear cover can be easily attached and detached with screws.
![technical-image-05](https://www.kyoshoeurope.com/pub/media/wysiwyg/product_images/34/34321B/5.jpg)
Compatible with most mainstream R/C car batteries available. The battery is secured with a hook-and-loop fastener belt, so various battery sizes and shapes can be secured in place.
![technical-image-06](https://www.kyoshoeurope.com/pub/media/wysiwyg/product_images/34/34321B/6.jpg)
Resin oil shocks equipped on front and rear suspensions soak up the bumps from the road surface. Dial adjustment of spring tension makes it easy to change chassis height setting.
![technical-image-07](https://www.kyoshoeurope.com/pub/media/wysiwyg/product_images/34/34321B/7.jpg)
H-pattern pin tires are equipped on front and rear to provide reliable grip on any surface. Newly designed spoke wheels recreate that retro style to match the body form.
![technical-image-08](https://www.kyoshoeurope.com/pub/media/wysiwyg/product_images/34/34321B/8.jpg)
Slipper clutch protects the gears and drive system from excessive loads. Tension settings of the slipper clutch can be adjusted to change driving characteristics.
![technical-image-09](https://www.kyoshoeurope.com/pub/media/wysiwyg/product_images/34/34321B/9.jpg)
Front and rear suspension upper arms and steering rod use turnbuckles so simply turn to adjust rod length and change camber angle and toe angle settings.
