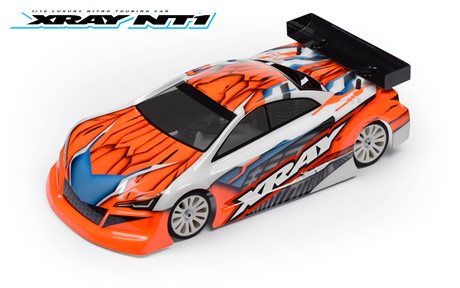

XRAY NT1'24 - 1/10 Luxury Nitro TC

2023/2024 All-new Features:

• All-new chassis with narrowed front suspension pivots increases stability & traction
• Hard composite suspension arms combined with the improved central chassis flex keeps the suspension geometry stable while the flex is transferred through chassis and radio plate to maintain traction
• Narrower front and rear suspension holders for improved traction and stability
• Lower down-stop mounting holders without the eccentric geometry make the car easier to set suspension down-stops
• All-new front aluminum bulkheads accommodate new upper arm holder with adjustable flex
• Redesigned front upper arm holder features new roll center positions in all 9 positions
• Ultra-compact and super lightweight receiver box moves the weight lower and closer to the center of the chassis
• Radio plate with new servo holders moves the throttle servo more rearwards, the steering servo more frontwards and receiver box with a more central location
• Servo saver stand with key lock design
• Fuel tube holders allows to be mounted directly on the radio plate for a clean look
• Simplified aluminum 2-speed shaft holders eliminate unnecessary braces to make the chassis more flexible, while the wider positioning provide improved support for the 2 speed shaft
• Pulley collar is optimized for the fixed position of the pulley on the 2-speed shaft
• New rear aluminum bulkheads have a 2mm front/rear wheelbase adjustment for easy traction tuning depending on the track conditions. Front position more traction, rear position more stability
• Longer rear suspension pins for wide range of wheelbase adjustment
• Both redesigned rear suspension holders and milled pockets in the chassis plate reduce the lowest pin position to generate more traction when needed
• Anti-roll bar bearing bushings front and rear for different thickness of anti-roll bars
• New redesigned rear anti-roll bar wire to accommodate narrower suspension and new shape eliminates any collision
