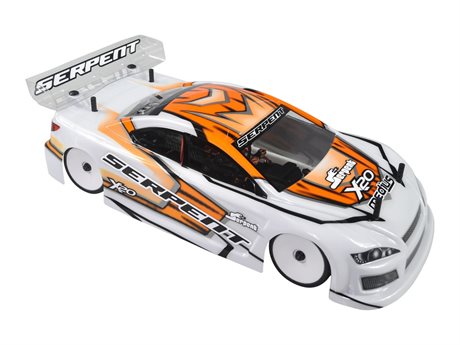

Serpent 190mm 1/10 scale ready-to-Race Touringcar, based on the successful X20 race-cars. Factory assembled, with race-wheel-tyres, pre-cut and prepainted body, Dragon-RC electronic speedo, Dragon-RC brushless 9T motor, Dragon-RC DTS-3 2.4ghZ transmitter. The full package to start racing in the electric touringcar category or just race anywhere for fun. http://promo.serpent.com/x20-rtr/
Super narrow, symmetrical , durable carbon chassis plate with optimized flex design, countersunk holes, central section holes all perfectly in center, pockets for geardiff, spool and spur.
Durable carbon topdeck with optimized flex design.
Battery-mount brackets and Lipo-holders
Easy to use nylon batter tape holder, which allow the battery tape to run over instead of under the chassis. The holders can be reversed for other battery position. The Lipoholders will securely keep the Lipo in place, also at hard impact.
Black nylon shocktower with 2 upper shock mounting holes to choose from.
Black nylon shocktower with 2 upper shock mounting holes to choose from . The rear bodypost are mounted to the top of the rear shocktower.
Moulded front brackets, with belt tension adjusting through excenters. Durable lower rear wishbones connected pivot balls to the chassis. An anti-roll bar system can be mounted as option.
Moulded rear brackets, with belt tension adjusting through excenters.
Durable lower rear wishbones connected pivot balls to the chassis. An anti-roll bar system can be mounted as option.
Machined aluminium motor mount / middle shaft support.
Ball raced middle shaft with 2 small pully’s and the main Serpent spur gear.
Large foam front bumper captured by a upper and lower nylon bumper
Front bodymount is mounted through the front bumper, and the rear ones are seated on the shocktower. Multiple bodyposiiton holes to choose from.
Very compact ballraced gear differential in the rear, with steel gears and axles for durability. Supersmooth.
Front nylon lightweight spool with screw mounted front gearpully
Transmission / belts / pullies
Smooth low friction fine pitch belts combined with optimized nylon pulley’s
Driveshaft / wheel hex / wheel axle
Steel driveshafts, combined with ballraced wheel axles and nylon wheel-hex adaptors
Steering system
Steering system with optimized ackermann for neutral steering-feeling.
Latest type competition shock absorbers with membranes and checked color-coded race springs.
Tyres-wheels
The X20 RTR is fitted with Dragon-RC rubber racing tyres with foam inlays on Serpent TC wheels for super-grip.
Body:
The EFRA approved 1/10 scale Serpent TC body Lex-is fitted, fully pre-cut and prepainted in a superb paintjob with 4 colors (Orange-Red-Blue-Green).
The X20 RTR comes with
- Dragon-RC 211009 Speedo DX-10 WP 45A with fan
- Dragon-RC 211010 Motor DL-10 brushless 13.5T 3450kv
- Dragon-RC 210013 Transmitter set DTS-3 2.4GHz
- Dragon-RC 210014 Receiver DRS-3 2.4GHz
- Dragon-RC 210003 digital servo 0.13s - 6kg
The Serpent X20 Ready-to-race offers a complete package to enjoy running anywhere outdoors on even surfaces / parking lots or even join any indoor or outdoor race.
Team Serpent
Manual and decals:
Full color owners manual with info on car and electronics, has all exploded views for easy parts-finding and detailed list with spare parts and optionals. Decal-sheet with Serpent and X20 logo’s are included as well.
Packing
The X20 RTR comes in a strong carton box with full color printing.
Optionals / upgrading
The Serpent X20 RTR is based on the high end race version of the X20. Most parts from the X20 race-version and also Most optionals, also fit the X20 RTR. This allows you to upgrade your X20 RTR to a higher level race spec step by step, with the parts you select. The X20 RTR parts manual shows those parts, and you can find them in the optionals section of the X20 RTR as well.
