Name: Kyosho JAVELIN 1:10 4WD KIT *LEGENDARY SERIES*
SKU: 30618
Price: 4590.00 SEK
Availability: InStock

(Klicka för en större bild)

Åter början på Juni -24

Artikelnummer:30618

Enhet:st.

Lagerstatus:Beställningsvara

4.590kr / st.

St:

Lägg i varukorg

Beskrivning

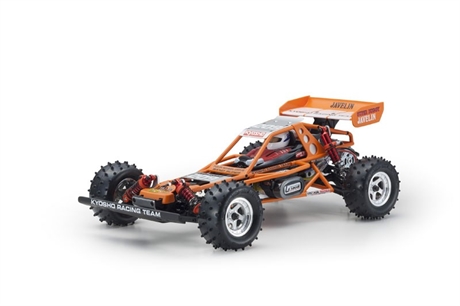

30618B JAVELIN Buggy Kit 4WD

The legend returns

Javelin. A machine that redefines what it means to be the best.

The Javelins design concept was to create A machine that redefines what it means to be the best. After more than 30 years since the original release in 1986, this electric off-road competition model has been recreated as the sixth model in the Kyosho Vintage Series. Incorporating a resin pipe-frame body resembling the innovative aluminum pipe frame body of the 1/8 scale Land Jump engine powered buggy, the new Javelin features the proven performance of double wishbone suspension with a narrow backbone-style skid frame that delivers ideal geometry for wide-angled steering. This combines with the Javelins superior sealed compartment 4WD chain-drive system to produce excellent performance and durability. At the heart of the external features that faithfully represent the image of the Javelin of 30 years ago, this Vintage Series version is packed with modern racing performance potential and is compatible with modern power sources. At the heart of the drive system is a counter gear equipped with slipper function and a final gear case made from metal to strengthen its load bearing capacity. The adoption of precision 48-pitch gear modules reduces power loss and the optimal combination of nylon and sintered alloy delivers both improved drive efficiency and reduced noise. In addition to chain drive, the drive system can also be changed to a belt system, which was optional in the original model. Also, the large diameter aluminum shocks, recreated in the original design, combine with long stroke suspension to deliver increased performance potential. Rediscover the joy of off-road buggy racing with the latest in racing technology and the nostalgic style of the Javelin.

Each part has been upgraded to handle with modern power sources while retaining Javelins unique original design.
New updated heavy duty aluminum inner roll bar for increased durability.
The new wing stay is compatible with the Optima(requires some cutting of the PC body).
Rear wing has been changed to chassis mounting to generate high downforce. The pedestal parts have been included with insert nuts to keep the wing securely fixed. Incorporation of insert nuts into the pedestals delivers even more secure mounting.
Just like the original Javelin, white, pastel green and fluorescent yellow colored roll cage bodies and wings are available. Red and black colors are on plan.
The aluminum plate on the front area of the roll cage body is now securely fixed with screws adding rigidity to the body.
Simple yet high rigidity aluminum backbone type chassis.
Two types of drive system can be selected. The 4WD chain system with sealed compartment that took the world by storm, or the 4WD belt system that was later released as an option.
FRP radio plate is suitable for ESCs of any brand.
One-piece wheels replicate the original stylish design while delivering a reduction in weight.
Full ball bearing specifications use 18 ball bearings. (chain drive system uses 16).
Hex heads ensure easy use and fastening security.
Includes separate helmet and polycarbonate body.
Hook and loop fastener battery stay (including battery straps printed with Kyosho logo) is compatible with various batteries and allows easy installation and removal.
Equipped with metallic counter gear.

Rear wing has been changed to chassis mounting to generate high downforce. The pedestal parts have been included with insert nuts to keep the wing securely fixed.	Equipped with choice of two drive systems. The original 1986 version used a chain drive with an optional belt drive sold separately. Both are included as standard in this Vintage Series version.
The gearbox is equipped with a slipper clutch to protect the drive system from sudden impacts such as landing from jumps. It can respond to various surface conditions with simple adjustments.	Main chassis, shock stay and plates are made from 6061T6 aluminum alloy for corrosion resistance and increased strength. Countersunk flat head and tapping screws give a flush finish and reduce the number of nuts used.
While faithfully replicating the original 1986 design, the oil shocks on the new version raise the performance with stainless steel shafts on front and rear and aluminum cylinders with bore diameter increased from 10mm to 12mm.	Nylon double wishbone suspension with long stroke delivers superior durability and running stability in combination with the increased bore of the oil shocks.
Replaceable inserts on the rear hub carriers allow three different toe angles (0°, 1°, 2°). Aluminum 12mm hex wheel hubs are fixed with screw pins.	While staying true to the Javelins original design, tires feature more pins and a revised compound to ensure increased grip. Includes lightweight chrome wheels.
