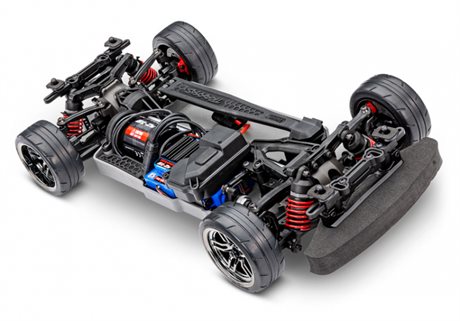

Traxxas 83124-4 - 1/10 Scale 4-Tec 2.0 Brushless AWD Chassis
The 4-Tec 2.0 AWD chassis provides the ultimate on-road driving experience with more power than ever before. The high-tech chassis keeps weight positioned as low as possible for a crisp, responsive feel. The modular interlocking design allows easy maintenance while the finely tuned suspension keeps the wheels glued to the pavement for maximum on-road performance. The new BL-2s brushless power system delivers effortless power for 64+ kph* speed with an added boost of torque for 4-wheel burnouts and powerful acceleration.
Choose your own body, battery, and charger (sold separately) to create your custom ride!
FEATURES ON 4-TEC 2.0 BRUSHLESS AWD CHASSIS (83124-4):
- NEW BL-2s brushless power system
- Waterproof BL-2s speed control with low-voltage detection for LiPo batteries
- 3300 kV brushless motor with internal cooling fan
- Adjustable chassis accepts standard 200 mm bodies
- Full-time AWD
- TQ™ 2.4 GHz radio system
- Waterproof electronics for all-season excitement
- Low-CG fiber-composite monocoque chassis with high approach angle front bumper
- Race-proven sealed differentials
New Brushless Power
4-Tec’s new BL-2s brushless power system is an absolute game-changer with 15% more speed, quicker acceleration, and a more responsive throttle. Improved efficiency, high-speed ball bearings, and an internal cooling fan allow 4-Tec to run battery after battery for all day fun. With no brushes to wear out, the BL-2s 3300 kV is long-lasting and requires virtually no maintenance.
Choose Your Body Style
4-Tec's revolutionary adjustable body mounts and wheelbase accommodate a wide variety of 200 mm bodies. You can also choose from several pre-painted and ready-to-mount Traxxas bodies - click the complementary products tab.
4-Tec 2.0 (83124-4) SPECS:
- Length: 379 mm
- Front Width: 196 mm
- Rear Width: 200 mm
- Center Ground Clearance: 9 mm
- Weight: 1.28 kg
- Height (overall): 62 mm
- Wheelbase: 256 mm
- Shock Length: Short (front and rear)
- Tire Diameter: 66 mm
- Tire Width (front): 26 mm
- Tire Width (rear): 30 mm
- Wheel Diameter: 1.9" (48 mm)
- Speed Control Type: BL-2s™ brushless electronic speed control
- Motor (electric): BL-2s™ 3300 kV brushless
- Overall Drive Ratio: 9.49
- Differential Type: Hardened steel bevel, sealed, limited slip
- Gear Pitch: 48 pitch
- Chassis Structure/Material: Molded tub / Nylon composite
- Drive System: Shaft-driven, direct drive AWD
- Steering: Dual-bellcrank
- Radio System: TQ™ 2.4 GHz radio with 6519 3-channel micro receiver
- Skill Level: 1
- Top Speed: 64+ kph*
- Battery Tray: L158 x W46 x H23/26 mm
- Required Items (sold separately): 4 "AA" batteries (for transmitter), charger, 6 or 7-cell NiMH or 2-cell LiPo battery
*With optional gearing and 2s LiPo battery (items sold separately)
BL-2s (WATERPROOF) ESC SPECIFICATIONS:
- Input voltage: 6-7 Cells NiMH (7.2 to 8.4 volts) or 2s LiPo (7.4/8.4 volts)
- Case Size: 39 x 59 x 31 mm
- Weight: 87 g
- BEC Voltage: 6.0 volts
- Low Voltage Detection (LVD): 2-stage indicators, switchable (on or off)
- Thermal Protection: 2- stage thermal shutdown
- Single-button setup: Traxxas EZ-Set®
Profile selection:
- Sport Mode: 100% FWD, 100% brakes, 100% REV
- Race Mode: 100% FWD, 100% brakes, no REV
- Training Mode:* 50% FWD, 100% brakes, 50% REV
*Patented
BL-2s 3300 kV Brushless Motor Specs:
- Type: Sensorless brushless motor
- Weight: 213 g
- Length: 80 mm
- Diameter: 36 mm
- Connector Type: Traxxas Quick Connect Motor Plug
